Código ErreBi: 64052
Código productor: RBEW05D
Productor: ErreBi Group
PLAZO DE ENTREGA PARA ARTÍCULOS NO DISPONIBLES: 60 DÍAS.
PARA ENTREGAS URGENTES DENTRO DE 3 SEMANAS CONTÁCTENOS POR PRIVADO

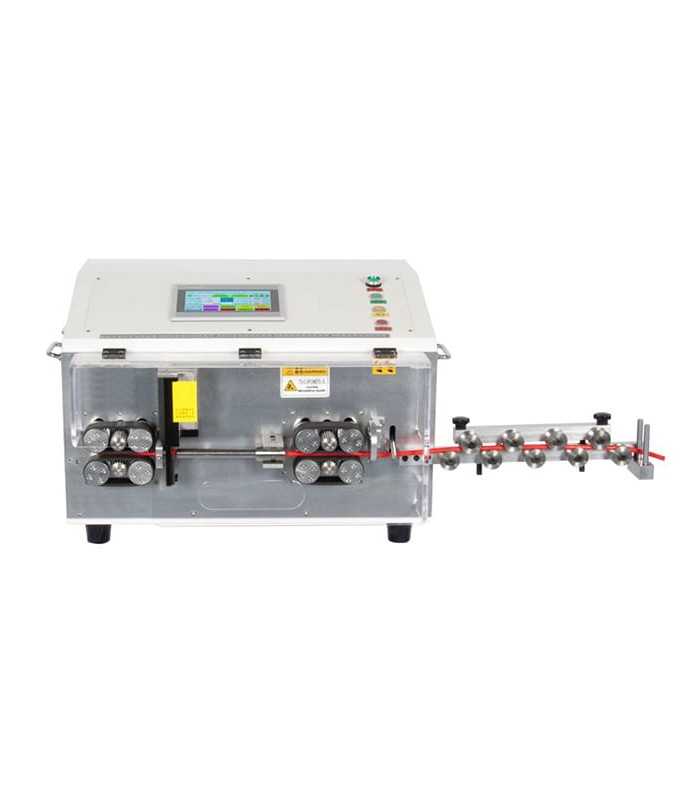

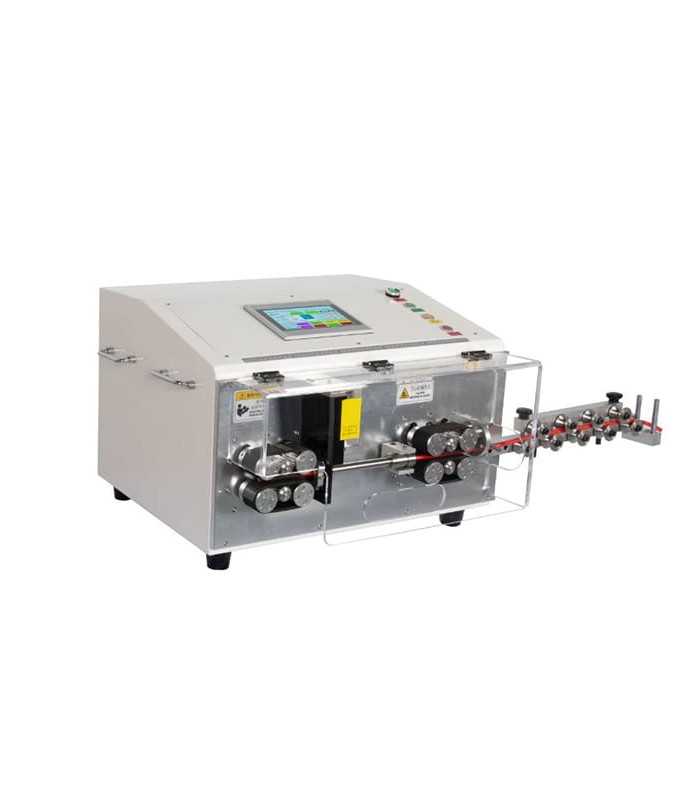

The EW-05D is designed for processing a wide range of industrial wires and cables up to 70mm2.
• 3-layer stripping capability for shielded cable;
• Strong 12 roll feed force.
• Feeding with belts
• PLC touch screen with intuitive program.
• Memory capacity of 100 materials
• Optional cutter and inkjet printer.
Model: RBEW05D
Stripping ability: 3-layer stripping for shielded cable
Conductor cross section: 1.5 - 70 mm²
Cutting length: 1 - 100,000 mm
Cutting length tolerance: < 0.002 * L
Stripping length (I side): 0 - 400 mm
Stripping length (side II): 0 - 180 mm
Cutting function: optional
Cable Tray Width: 200mm
Driving mode: 12 rollers with belt drive
Display mode: 7 inch touch screen
Memory capacity: 100 programs
Blade material: steel
Productivity: 1500 - 2500 pcs./h
Power supply: 110, 220V (50 - 60Hz)
Power: 800W
Weight: 80kg
Size: 700x640x480mm
