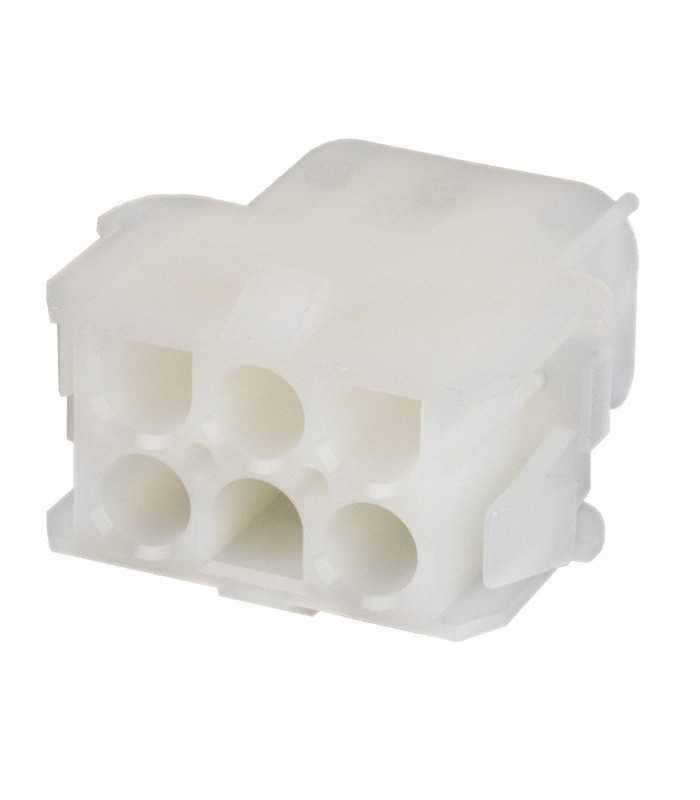

Conector Mate n lok hembra 6 vías

Product Type Features
Connector System: Wire-to-Panel, Wire-to-Wire
Product Type: Housing
Housing Type: Receptacle
Connector & Contact Terminates To: Wire & Cable
Contact Type: Pin

Configuration Features
Number of Positions: 6
Number of Rows: 2
Row-to-Row Spacing: 6.35 mm [ 0.25 in]
Multiple Contact Types: Without
Contact Layout: Matrix

Electrical Characteristics
Operating Voltage (VAC): 600

Contact Features
Contact Retention: Without

Mechanical Attachment
Connector Mounting Type: Panel
Assembly Integration Feature: Without
Panel Mount Retention: With
Panel Mount Retention Type: Patch & Tabs

Housing Features
Centerline (Pitch): 6.35 mm [ 0.25 in]
UL Flammability Rating: UL 94V-2
Housing Material: Nylon

Dimensions
Panel Thickness: 0.76 – 2.29 mm [0.03 – 0.09in]

Usage Conditions
Operating Temperature Range: -55 – 105°C [-67 – 221°F]
Sealed Condition: Not Sealed

Industry Standards
Glow Wire Rating: Standard Part - Not Glow Wire
VDE Tested: Yes
CSA File Number: LR7189
UL Rating: Recognized
Agency/Standard: CSA, UL
CSA Rating: Certified
Agency/Standard Number: E28476
