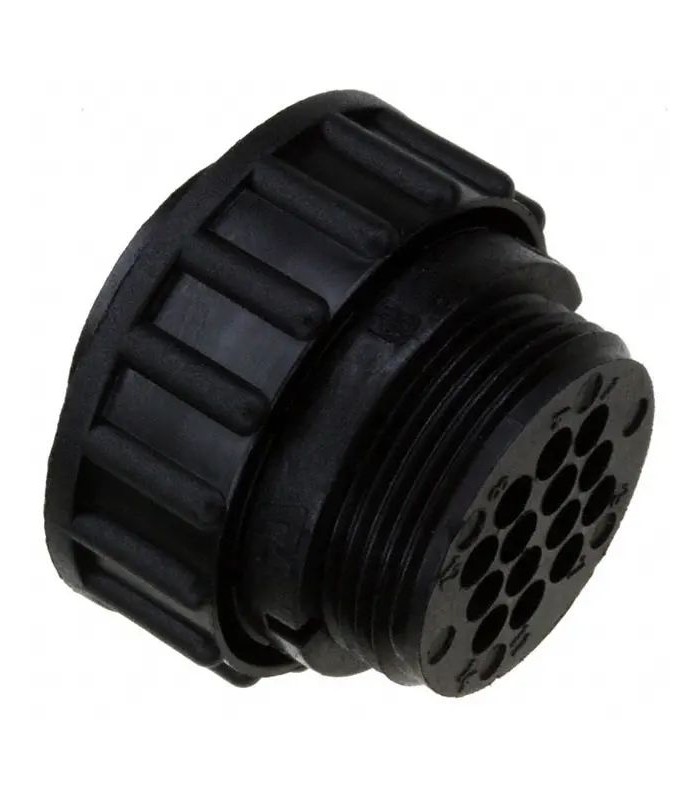

Conector CPC tamaño 17 Macho 14 Vìas

Product Type Features
-Connector Product Type: Housing
-Connector System: Wire-to-Wire
-Sealable: No
-Connector & Contact Terminates To: Wire & Cable
-Connector & Housing Type: Plug
-Circular Connector Type: All Plastic

Configuration Features
-Number of Positions: 14
-Number of Power Positions: 0
-Number of Signal Positions: 14
-Reverse Numbering: Without

Electrical Characteristics
-Operating Voltage(VDC): 600
-Operating Voltage(VAC): 600

Contact Features
-Reverse Gender: Standard
-Contact Type: Socket
-Contact Protection: With

Mechanical Attachment
-Screw & Hole Thread Size: 15/16-20 UNEF-2A
-Connector Mounting Type: Cable Mount (Free-Hanging)
-Mating Alignment: With
-Mating Retention: With
-Panel Mount Feature: Without
-Mating Retention Type: Threaded Coupling
-Mating Alignment Type: Keyed

Housing Features
-Housing Color: Black
-Housing Material: Thermoplastic
-Circular Connector Shell Size: 17
-Body Orientation: Straight

Usage Conditions
-Operating Temperature Range: -55 – 105°C[-67 – 221°F]
-Fluid Resistance: None

Operation/Application
-Circuit Application: Power & Signal
-Shielded: No

Industry Standards
-UL Flammability Rating: UL 94V-0
-VDE Tested: No
-CSA Certified: Yes
-UL Rating: Recognized
