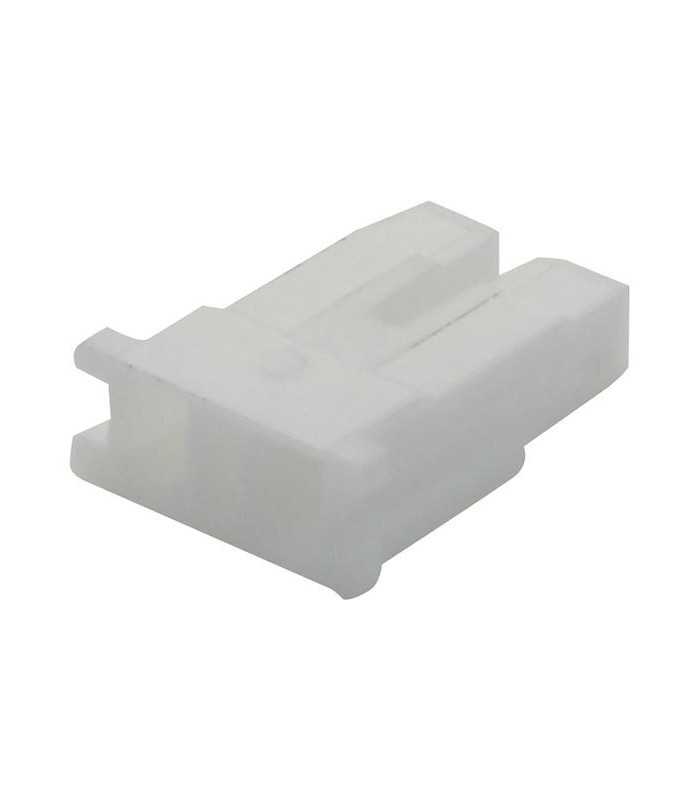

Conector BHS hembra 2 vías

Código ErreBi: 21384
Código productor: BHSR-02VS-1
Productor: Japan Solderless Terminals

0,14 € (tax excl.)

0,17 € (impuestos inc.)

Descuentos por cantidades

Cantidad	Precio unitario	Usted ahorra
10	0,17 €	0,00 €
30	0,14 €	1,02 €
50	0,13 €	2,14 €
100	0,11 €	6,00 €
250	0,09 €	19,19 €
500	0,09 €	42,70 €
1000	0,08 €	94,03 €

Available in stock 890 Artículos

La cantidad mínima en el pedido de compra para el producto es 10.

Estado

Nuevo

Referencia:

RBCTBHSPM2V

Marca:

Japan Solderless Terminals

A lista de deseos

Descripción

Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.

Low profile
SMT configuration
Applicable to special wires
Housing lock also serves as polarizing device
Adopt wide large for socket contact
Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber.

Number of Contacts: 2
Number of Rows: 1
Pitch: 3.5mm
Gender: Male
Mounting Type: Through Hole
Series: BHSR
For Use With: BHS Connectors
Body Orientation: Straight
Length: 7.5mm
Width: 3.2mm
Housing Material: PBT

Lee masShow less

Detalles del producto

Referencia RBCTBHSPM2V

Ficha técnica
