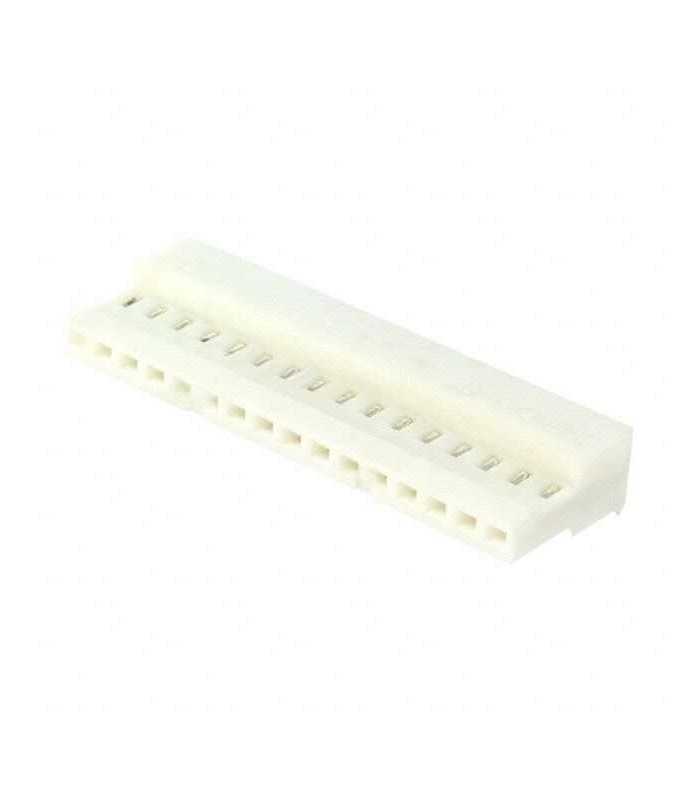

Conector MTA 100 Hembra 16 Vìas Blanco para cable AWG 24

Product Type Features
- Connector Product Type: Connector Assembly
- Housing Type: Receptacle
- Product Type: Connector
- Connector & Housing Type: Receptacle
- Connector System: Wire-to-Board
- Insertion Force Type: Normal
- Sealable: No
- Connector & Contact Terminates To: Wire & Cable
- Connector Type: Connector Assembly
- Wire/Cable Type: Stranded
- Shape: Rectangular
- Product Style: Assembly

Configuration Features
- Number of Positions: 16
- Number of Rows: 1
- Panel Gasket: Without
- Number of Cavities: 16

Electrical Characteristics
- Operating Voltage (VAC): 250

Contact Features
- Contact Underplating Material: Nickel
- Contact Mating Area Plating Material: Tin
- Wire Contact Termination Area Plating Material: Tin
- Contact Plating Material: Tin
- Contact Retention Within Housing: With
- Contact Current Rating (Max) (A): 5
- Contact Type: Female
- Contact Layout: In-line

Termination Features
- Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC)

Mechanical Attachment
- Panel Mount Feature: Without
- Contact Retention Type Within Housing: Locking Lance
- Mating Alignment: Without
- Mating Retention: With
- Mating Retention Type: Locking Ramp
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Panel Mount: No

Housing Features
- Centerline (Pitch): 2.54 mm [ .1 in ]
- Housing Material: Nylon 6/6
- Housing Color: White

Dimensions
- Wire Size (mm²): .2
- Wire Size (AWG): 24
- Length: 25.4 mm [ 1 in ]
- Height: 13.21 mm [ .52 in ]
- Width: 6.99 mm [ .275 in ]

Usage Conditions

- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

- Shielded: No
- Circuit Application: Signal

Industry Standards

- UL Flammability Rating: UL 94V-2
- UL File Number: E28476
- CSA File Number: LR7189
- UL Rating: Recognized
- Agency/Standard: CSA, UL
- CSA Rating: Certified
