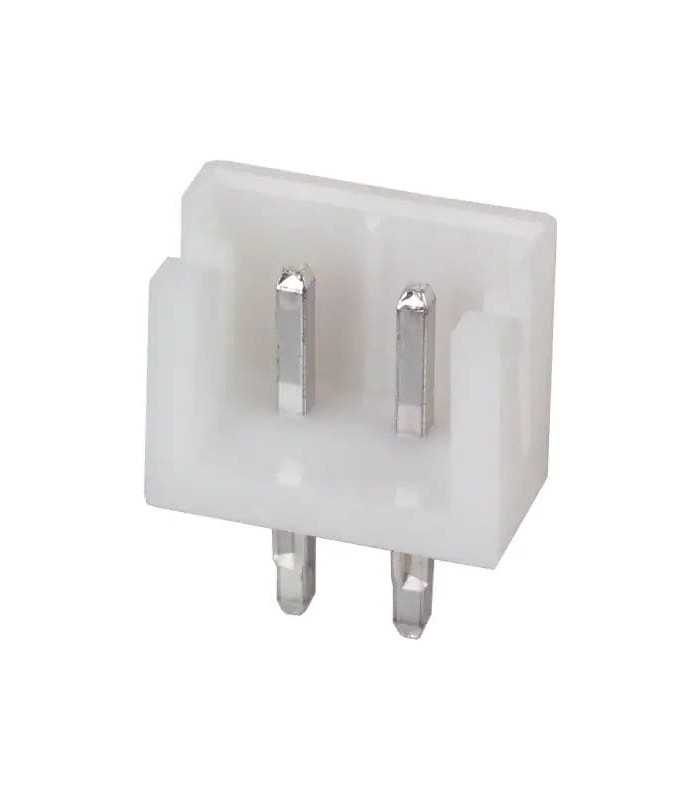

Conector EHR Paso 2.50 mm Hembra 2 Vìas PCB

Manufacturer: JST Sales America Inc.
Series: EHR
Contact Type: Male Pin
Pitch - Fit: 0.098" (2.50mm)
No. of positions: 2
No. of files: 1
Contact Length - Mating: 0.130" (3.30mm)
Contact Length - Pin: 0.126" (3.20mm)
Insulator Height: 0.236" (6.00mm)
Contact material: Brass
Insulating material: Polyamide (PA66), nylon 6/6
Characteristics:
Operating temperature: -25°C ~ 85°C
Material flammability rating: UL94 V-0
Insulating colour: Natural
Rated current (A): 3A
Rated voltage: 250V
Paired stack heights: 8.1mm
