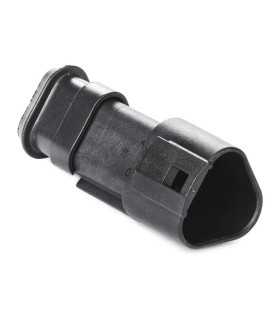

Conector Series DT Hembre 3 Vìas Amphenol

Código ErreBi: 51080
Código productor: AT04-3P
Productor: Amphenol
Lee masShow less
1,11 € (tax excl.)
1,35 € (impuestos inc.)

Descuentos por cantidades

Cantidad Precio unitario Usted ahorra
5 1,35 € 0,00 €
10 1,22 € 1,34 €
25 1,08 € 6,75 €
50 1,02 € 16,93 €
100 0,88 € 47,53 €
250 0,75 € 152,18 €
500 0,68 € 338,55 €
1000 0,61 € 745,49 €
Available in stock 100 Artículos
La cantidad mínima en el pedido de compra para el producto es 5.
Estado
Nuevo
Referencia:
RBCTDTPM3VA
Marca:
A lista de deseos
Descripción
Product Type Features
Connector Style: Housing for male terminals
Sealed: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector System: Wire-to-Wire

Configuration Features
Number of Positions: 3

Electrical Characteristics
Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Operating Voltage (VDC): 250

Body Features
Body Material: PA GF
Cable Exit Angle: 180°
Color: Gray

Contact Features
Mating Pin Diameter: 1.5 mm [ 0.059 in ]

Mechanical Attachment
Terminal Position Assurance: No
Mounting Feature: No
Polarized: Yes

Housing Features
Pitch 4.45 mm [ 0.175 in ]

Dimensions
Width 17.15 mm [ 0.675 in ]
Height 17.02 mm [ 0.67 in ]
Length 43.38 mm [ 1.708 in ]

Usage Conditions
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Industry Standards
Degree of Protection: IP67
UL Flammability Rating: None
Lee masShow less
Detalles del producto
RBCTDTPM3VA

Ficha técnica

Minima pedido
5
Tipo de unidad
piezas
