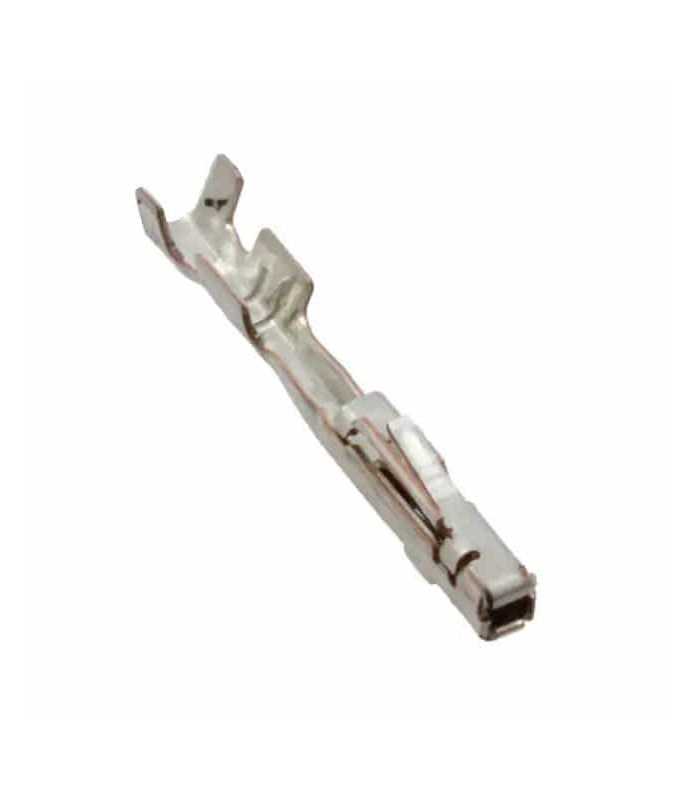

Terminal Multilock 025 Hembra

Contact characteristics
Crimp Type: Crimp
Typical rated current (A): 4
Terminal and splice type: Socket
Mating tongue width: .64 mm
Mating tongue thickness: .64 mm
Automotive terminal interface plating: tin
Contact Termination Area Plating Material: Tin
Dimensions
Wire size (AWG): 24 - 20
Wire size (mm²): .22 - .56
Wire insulation diameter: .95 - 1.72 mm
Terms of use
Operating temperature (max) (° C): 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C
