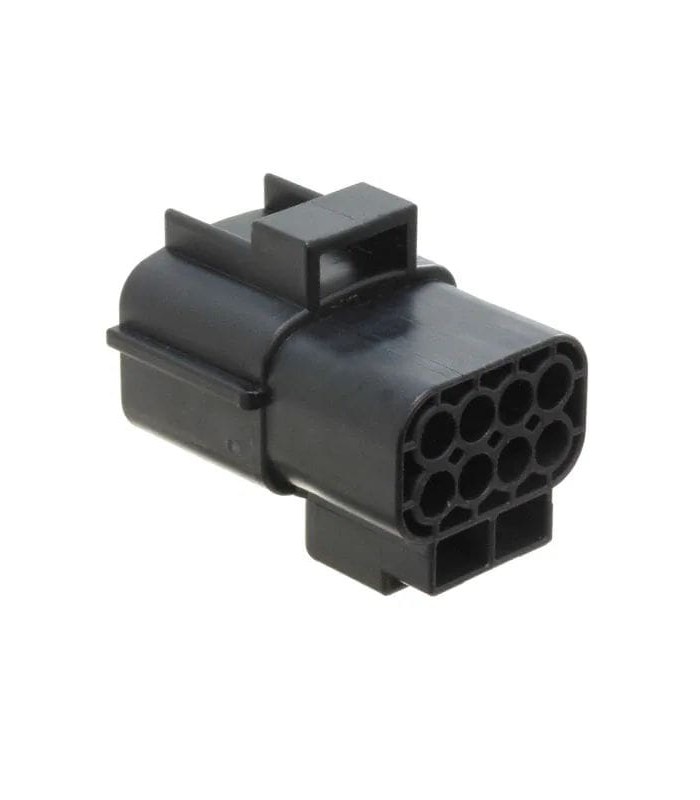

Conector Econoseal J-Mark II Hembra 8 vìas

Product Type Features
- Connector & Housing Type: Housing for Male Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Strain Relief: No
- Row-to-Row Spacing (mm): 3, 3.5
- Row-to-Row Spacing (in): .118, .138

Configuration Features
- Number of Positions: 8
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12
- Operating Voltage (VDC): 12

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PBT

Contact Features
- Mating Tab Width: 1.8 mm [ .071 in ]

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 4.8 mm [ .189 in ]

Dimensions
- Width: 23.1 mm [ .909 in ]
- Height: 20.6 mm [ .811 in ]
- Length: 35.5 mm [ 1.398 in ]

Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Operation/Application
- Circuit Application: Signal

Industry Standards
- UL Flammability Rating: UL 94V-2

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
