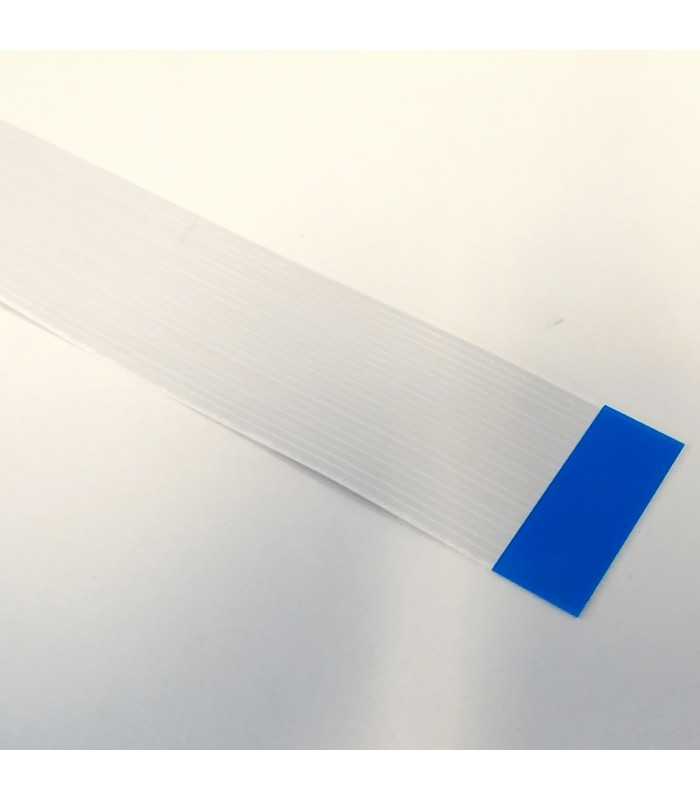

Cavo FFC 22 vie passo 1,0 mm lunghezza 200 mm

MATERIAL
• Insulation: PET (White)
• Support tape: PET (Blue)
• Flamability rating UL Sub.758
• Contact material: Copper
• Contact plating: Tin
• Quality class: 20 Mating cycles minimum
• Pitch: 1.00 mm
ENVIRONMENTAL
• Operating temperature: –30 °C up to 105 °C
• Heat resistance: 85°C x 95Hrs
• Moisture resistance: 40°C, 95% RH x 96Hrs
• Compliance: Lead free and RoHS
MECHANICAL
• Elongation of insulator: More than 60 %
• Tensil strenght of insulation: More than 3.5kg/mm²
• Flexig test: 180° More than 20 times
• Abrasion: More than 10.000times
• Pull/Out: More than 20 times
ELECTRICAL
• Working voltage: 60V
• Current rating: 1 A
• Insulation resistance: 500 Vdc more than1.000 MOhm
• Dielectric strenght: 500 Vac/1mn No breakdown
• Conductor resistance: Less than 0.33Ohm/m
• Contact resistance: 20 mOhm max
