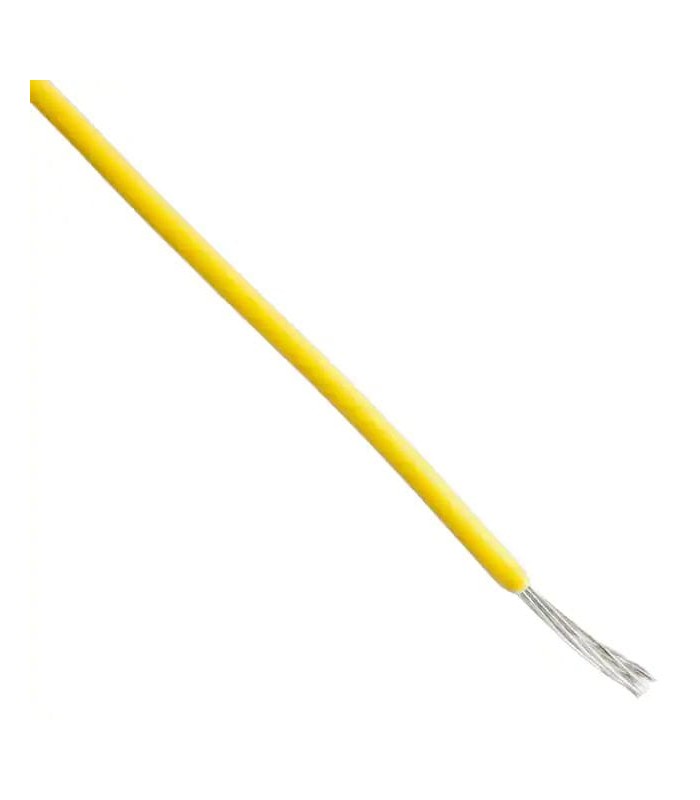

Cable Unipolar UL Style 1213 AWG 28 Teflon PTFE 600V Amarillo

The PTFE wire with high temperature resistance, chemical and solvent resistance and excellent electrical properties. This 600V PTFE wire can be used at temperatures ranging from -60°C to + 200°C depending on the application.

Silver-plated braided copper conductors that protect wires from corrosion and increase efficiency in hot and humid environments.

Easy to handle, strip and finish.

PTFE insulation.

The connecting wire can be used for a wide range of applications, be it in a control cabinet, high temperature furnace or specialized machine tool.

Manufacturer: Alpha Wire
Wire Diameter - AWG: 28AWG
Coating color: Yellow
Cable length: 100 feet
Weave: 7x36
Insulating Material: Polytetrafluoroethylene (PTFE)
Rated Voltage: 600V
Type: MIL-DTL-16878/4 (Type E)
Conductor Material: Silver Plated Copper
Maximum temperature: +200C
Series: 5856
Brand: AlphaWire
Outer diameter: 0.89mm
