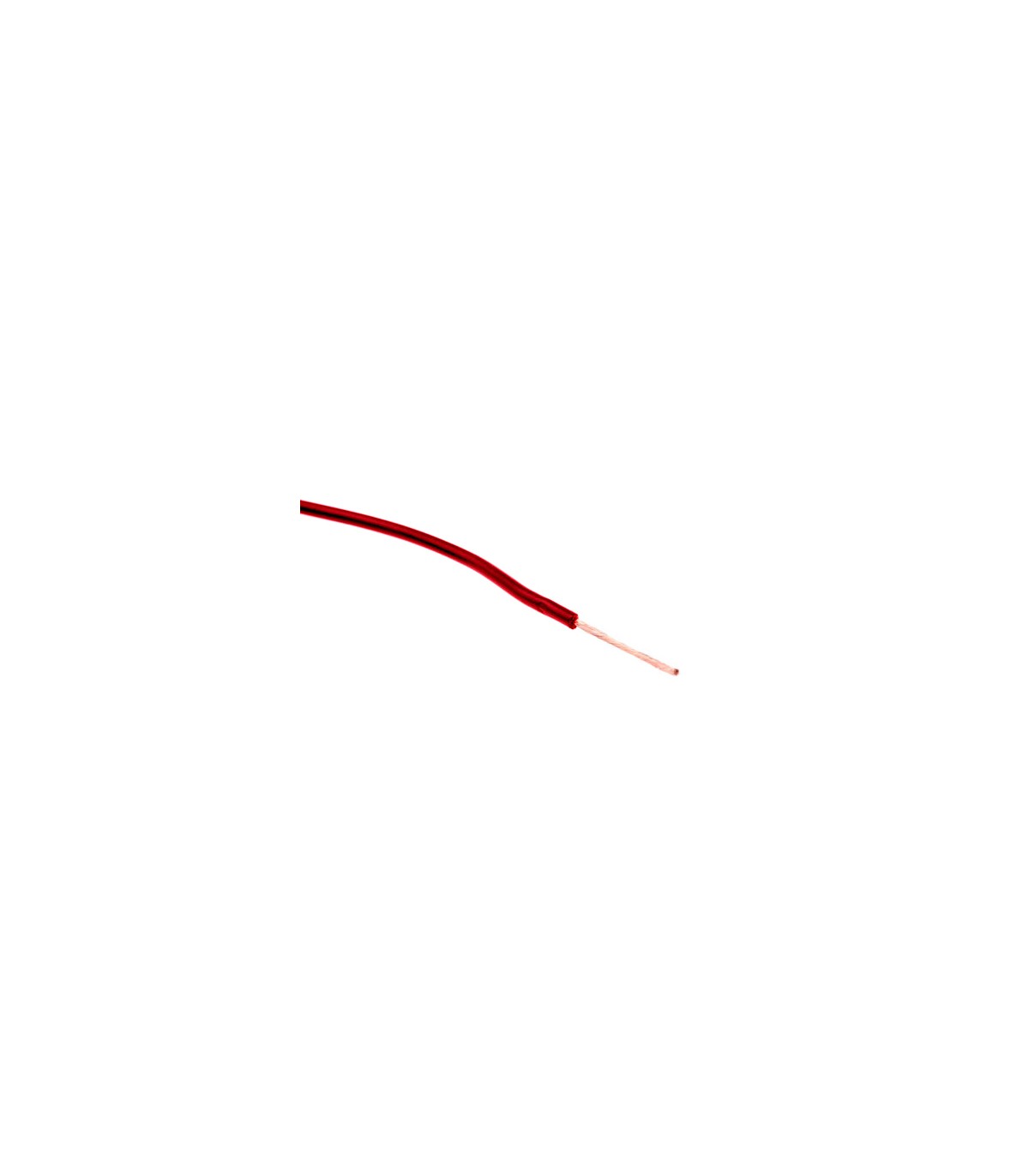

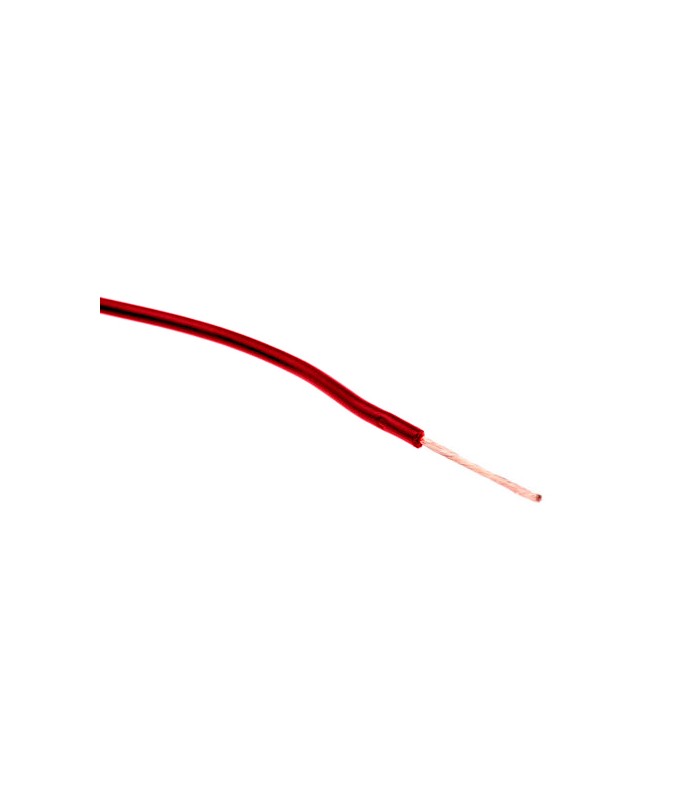

Cable Extraflex 2,50 mm Conductor 24x0,20 mm Rojo

APPLICATIONS

These cables are suggested whereas flame-resistance is requested together with absence of smoke or toxic halogen fumes during the development of fire, they are suitable for indoor general wiring in public areas, for example as supply lead within cinemas, hospital or airport projects. As power or control cables for installation where fire, smoke emission and toxic fumes create a real danger for public safety. For temporary occasional outdoor use, also in places where vertical water drops fall is likely.

Temperature range: +5 to +70°C, -20 to +70°C (fixed installation)
Short-circuit temperature: 160°C
Rated voltage: 300/500 V
Test voltage: 2500 V
Flame resistance: IEC 60332-1-2
Halogen-free: EN 50525-1, EN 50267-2-2, EN 50267-2-1, EN 60884-2
Suitable for indoor use
Suitable for fixed installation
Bending radius: >= 10 x D (fixed installation)
