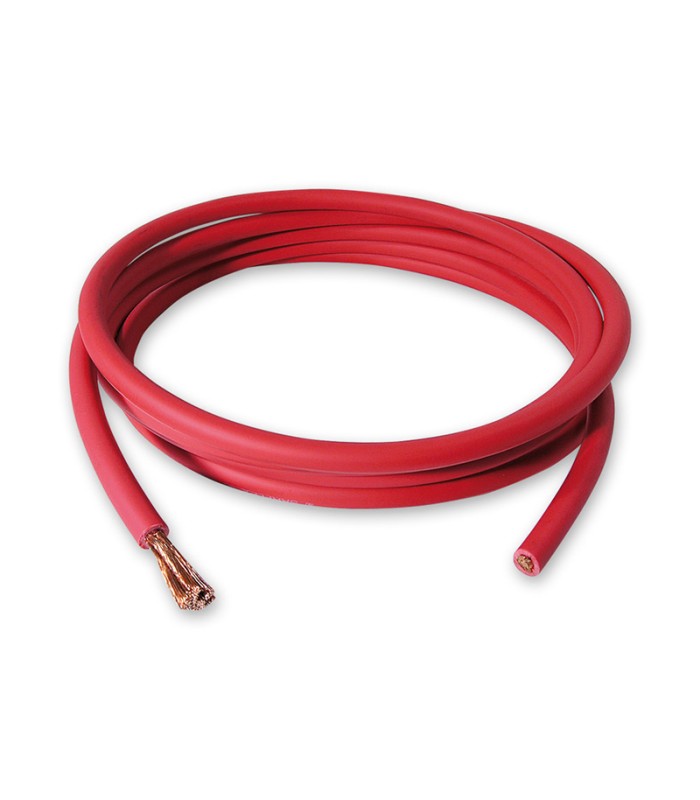

Cable unipolar maquina soldar sec. 35,00 mmq rojo
Código ErreBi: 25012
Venta por metros
Lee masShow lessVenta por metros
18,88 €
(tax excl.)
23,03 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCVSLD35RO
Marca:
A lista de deseos
Cables for welding machines
material: PVC
tipology: SINGLECORE
Applications: Welding Cables
Conditions of employment
For secondary side connection of powers sources for hand or automatic metal-arc welding for
secondary voltage typical of welding equipment.
Type of electrical conductor: Flexible red copper
Main rule: -
Self-extinguishing: EN 60332-1-2 , IEC 60332-1-2
Description
PVC insulated cables for welding machines.
Review number:n. 4 - 23/2/2011
Nominal tension: 450/750 V
Type of outer sheath: TM2
Color of the outer sheath: Black
Operating temperature: +5° C | +70° C
Short circuit temperature: 160° C °C
Test voltage: 2500 V
Cable marking: ELFLEX (sect) mm² CE
Minimum radius of curvature: For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation. For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation.
Insulation tolerance: ± 0,1
Sheath tolerance: ± 0,2
Lee masShow less
material: PVC
tipology: SINGLECORE
Applications: Welding Cables
Conditions of employment
For secondary side connection of powers sources for hand or automatic metal-arc welding for
secondary voltage typical of welding equipment.
Type of electrical conductor: Flexible red copper
Main rule: -
Self-extinguishing: EN 60332-1-2 , IEC 60332-1-2
Description
PVC insulated cables for welding machines.
Review number:n. 4 - 23/2/2011
Nominal tension: 450/750 V
Type of outer sheath: TM2
Color of the outer sheath: Black
Operating temperature: +5° C | +70° C
Short circuit temperature: 160° C °C
Test voltage: 2500 V
Cable marking: ELFLEX (sect) mm² CE
Minimum radius of curvature: For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation. For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation.
Insulation tolerance: ± 0,1
Sheath tolerance: ± 0,2
RBCVSLD35RO
Ficha técnica
- Tipo de producto
- Cable máquinas soldadura
- Color
- Rojo
- Diámetro externo
- 12.20 mm
- Voltaje
- 750V
- Temperatura de funcionamiento min.
- +5°C
- Temperatura de funcionamiento maxn.
- +70°C
- Material de aislamiento
- PVC
- Conductor (Material)
- Cobre rojo
- Cable de sección mmq
- 35.00 mmq
- Tamaño de hebras
- 0.31 mm
- Blindaje
- No
- Prueba de voltaje
- 2500V
- Resistencia a las llamas
- IEC 60332-1-2
- Tipo de empleo
- Sistemas de soldadura
- Resistencia del conductor
- <= 0.58 Ohm/Km
- Minima pedido
- 1
- Tipo de unidad
- metro
