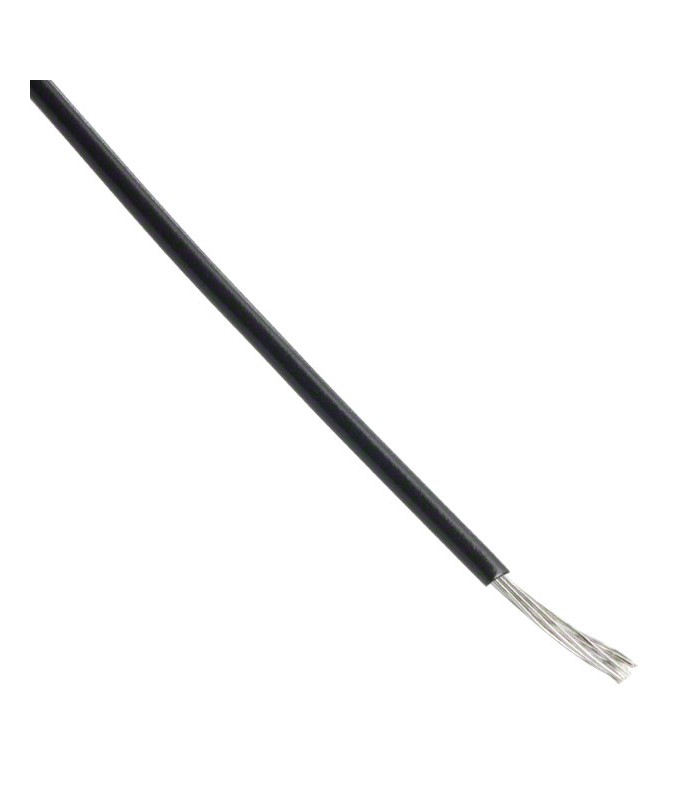

Cable Unipolar UL Style 1213 AWG 24 Teflon PTFE 600V Negro
Código ErreBi: 25649
Código productor: 5854/7 BK
Productor: Alpha Wire
Venta por metros
Lee masShow lessCódigo productor: 5854/7 BK
Productor: Alpha Wire
Venta por metros
3,28 €
(tax excl.)
4,00 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCVS121324ANRAW
Marca:
A lista de deseos
The PTFE wire with high temperature resistance, chemical and solvent resistance and excellent electrical properties. This 600V PTFE wire can be used at temperatures ranging from -60°C to + 200°C depending on the application.
Silver-plated braided copper conductors that protect wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and finish.
PTFE insulation.
The connecting wire can be used for a wide range of applications, be it in a control cabinet, high temperature furnace or specialized machine tool.
Conductor section: 0.23 mm2
Sheath color: Black
AWG: 24 AWG
Conductor strands: 7 / 0.20 mm
Insulation material: PTFE
Outer diameter: 1.12mm
Rated voltage: 600V
Conductor material: Silver-plated copper
Wire type: UL1213
Operating temperature: -60 ° C to + 200 ° C
Shield type: Unshielded
Insulation thickness: 0.3mm
Lee masShow less
Silver-plated braided copper conductors that protect wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and finish.
PTFE insulation.
The connecting wire can be used for a wide range of applications, be it in a control cabinet, high temperature furnace or specialized machine tool.
Conductor section: 0.23 mm2
Sheath color: Black
AWG: 24 AWG
Conductor strands: 7 / 0.20 mm
Insulation material: PTFE
Outer diameter: 1.12mm
Rated voltage: 600V
Conductor material: Silver-plated copper
Wire type: UL1213
Operating temperature: -60 ° C to + 200 ° C
Shield type: Unshielded
Insulation thickness: 0.3mm
RBCVS121324ANRAW
Ficha técnica
- Color
- Negro
- Diámetro externo
- 1.12 mm
- Voltaje
- 600V
- Temperatura de funcionamiento min.
- -60°C
- Temperatura de funcionamiento maxn.
- +200°C
- Material de aislamiento
- Politetrafluoroetileno (PTFE)
- Conductor (Material)
- Cobre Plateado
- Cable de sección mmq
- 0.23 mmq
- Cable de sección AWG
- 24 AWG
- Número de hebras
- 7
- Tamaño de hebras
- 0,20 mm
- Blindaje
- No
- Style
- UL Style 1213
- Minima pedido
- 1
- Tipo de unidad
- metro
