6,86 €
(tax excl.)
8,37 €
(impuestos inc.)
Código ErreBi: 40847Venta por metros

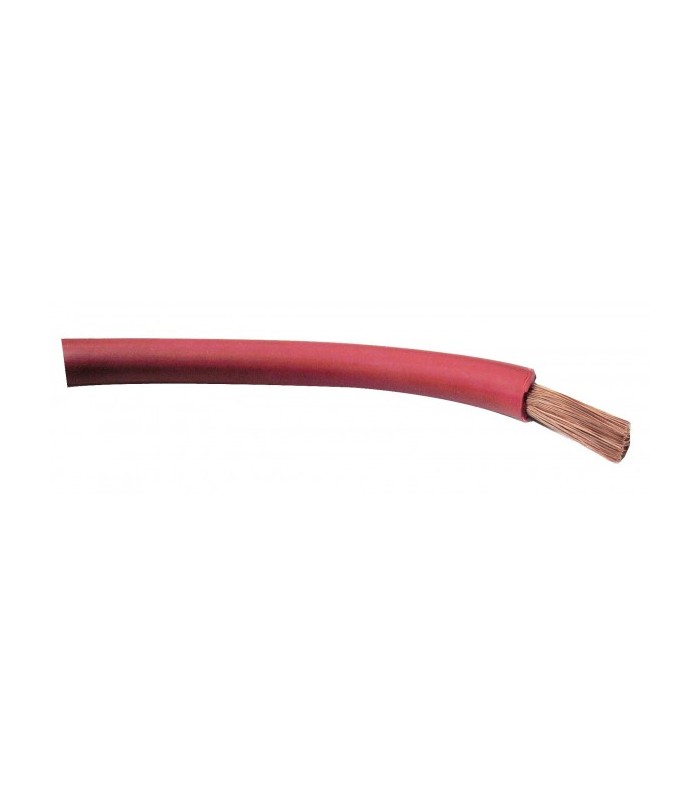

Cable Unipolar N07V-K sec. 25,00 mmq Rojo
Código ErreBi: 22760
Venta por metros
Lee masShow lessVenta por metros
9,89 €
(tax excl.)
12,07 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCV25N07RO
Marca:
A lista de deseos(1)
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Lee masShow less
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCV25N07RO
Ficha técnica
- Tipo de producto
- Cable H07V-K
- Color
- Rojo
- Diámetro externo
- 9.00 mm
- Voltaje
- 750V
- Temperatura de funcionamiento min.
- -10°C
- Temperatura de funcionamiento maxn.
- +70°C
- Material de aislamiento
- PVC
- Conductor (Material)
- Cobre Electrolítico
- Cable de sección mmq
- 25.00 mmq
- Blindaje
- No
- Prueba de voltaje
- 2500V
- Tipo de empleo
- Cableado Interno
- Resistencia del conductor
- <= 0.780 Ohm/Km
- Minima pedido
- 1
- Tipo de unidad
- metro
