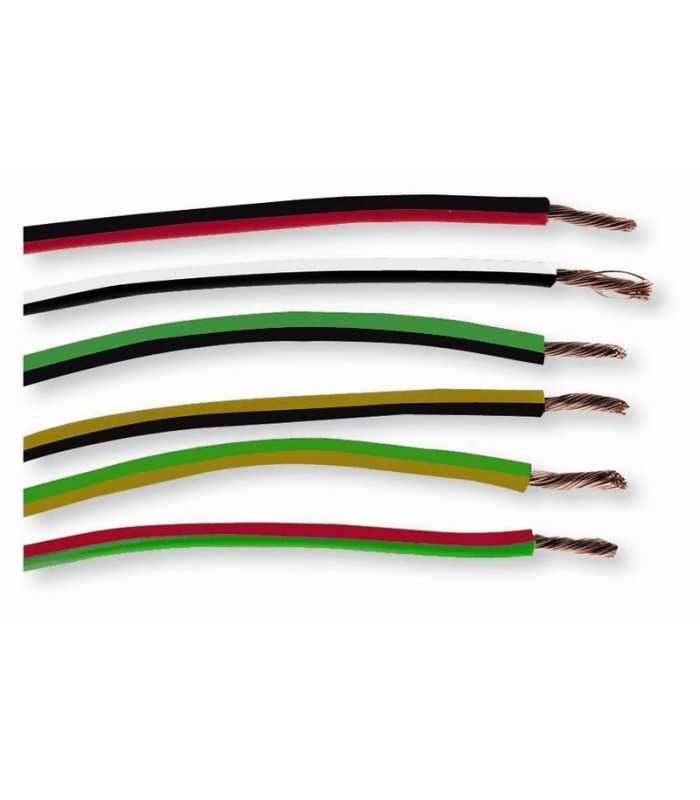

Cable Unipolar H05V-K sec. 0,75 mmq Azul/Amarillo
Código ErreBi: 18301
Venta por metros
Lee masShow lessVenta por metros
0,25 €
(tax excl.)
0,31 €
Estado
Nuevo
Referencia:
RBCV0.75H05BLGL
Marca:
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Lee masShow less
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCV0.75H05BLGL
Ficha técnica
- Tipo de producto
- Cable H05V-K
- Color
- Azul/Amarillo
- Diámetro externo
- 2.30 mm
- Voltaje
- 750V
- Temperatura de funcionamiento min.
- -10°C
- Temperatura de funcionamiento maxn.
- +70°C
- Material de aislamiento
- PVC
- Conductor (Material)
- Cobre Electrolítico
- Cable de sección mmq
- 0.75 mmq
- Número de hebras
- 24
- Tamaño de hebras
- 0.193 mm
- Blindaje
- No
- Prueba de voltaje
- 2500V
- Resistencia a las llamas
- IEC 60332-1-2
- Tipo de empleo
- Cableado Interno
- Resistencia del conductor
- <= 26.0 Ohm/Km
- Minima pedido
- 6
- Tipo de unidad
- metros
