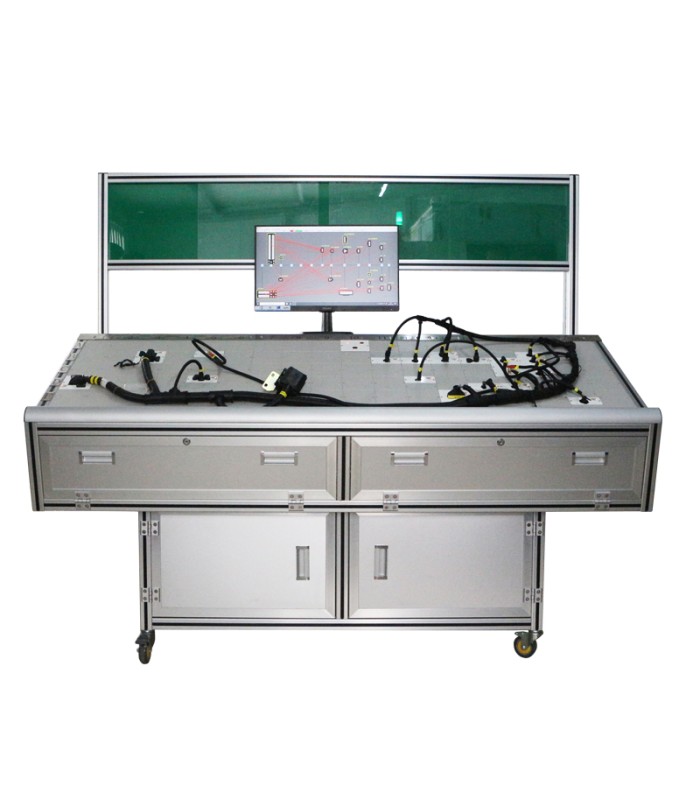

512 testeur de connexions pour câblage électrique logiciel complet avec moniteur, souris et clavier

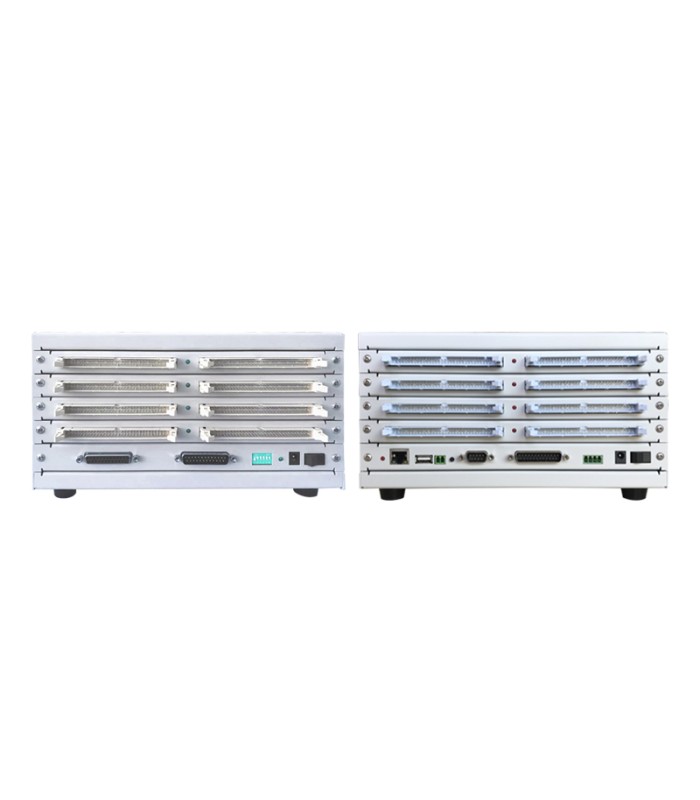

The UC6601X Harness Test System is a low voltage test system and can be used to locate wire shorts, reverses and open connections, with the ability to test resistors, capacitors, diodes and LEDs within the harness.
It is a high-performance wire harness test system ideal for automotive, marine, railway, appliance wire harnesses, etc.

Characteristics:
1. Support scan gun
2. Intelligent voice prompt
3. quick creation of connectors
4. Manual change cycle table is supported
5. Test reports
6. Support cycle table input
7. The test is fast, simple and intuitive.
8. Support various printers, any content is available to edit and print

Technical specifications:
Test Point: Up to 3072 test points can be supported
Input: 2 input points (12-24V)
Output: 2 relay outputs, 4 optocoupler outputs
Conduction thresholds: controlled by the program
Test current: 0-2.5mA
Test voltage: 0-5V
Diode test: forward voltage is 5V
Support LED: All test points can control LED
Firmware Update: Available
