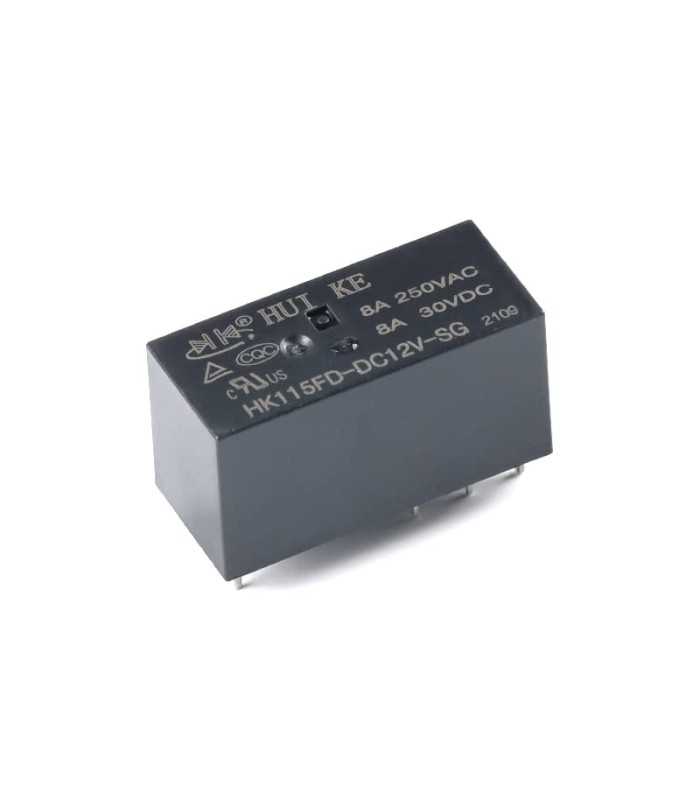

Relais pour PCB 12VDC 8A/250VAC
Code ErreBi: 62223
Code Producteur: HK115FD-DC12V-SG
Producteur: HUI KE
Lire la suiteShow lessCode Producteur: HK115FD-DC12V-SG
Producteur: HUI KE
12,33 €
(tax excl.)
15,04 €
TTC
Condition
Neuf
Référence:
RBRPCB12VDC8A
Marque:
Ajouter à la liste de souhaits
Relay type: electromagnetic
Contact configuration: DPDT
Coil rated voltage: 12V DC
AC load capacity @R: (with resistance load) :8A / 250V AC
DC load capacity @R: (with resistance load): 8A / 30V DC
Switching voltage: max. 220V DC, max. 400V AC:
Relay version: miniature
Assembly: PCB
Coil resistance: 360O
Minimum coil voltage: 8.4V DC
max voltage of the coil: 18V DC
External dimensions: 29x12.5x15.7mm
Coil power consumption: 400mW
Working temperature: -40...85°C
Relay series: 41.52
Lead spacing: 5mm
Lire la suiteShow less
Contact configuration: DPDT
Coil rated voltage: 12V DC
AC load capacity @R: (with resistance load) :8A / 250V AC
DC load capacity @R: (with resistance load): 8A / 30V DC
Switching voltage: max. 220V DC, max. 400V AC:
Relay version: miniature
Assembly: PCB
Coil resistance: 360O
Minimum coil voltage: 8.4V DC
max voltage of the coil: 18V DC
External dimensions: 29x12.5x15.7mm
Coil power consumption: 400mW
Working temperature: -40...85°C
Relay series: 41.52
Lead spacing: 5mm
