Orange Pi Lite avec 1 GB de RAM
Code ErreBi: 60978
Producteur: Orange
Mémoire (SDRAM) : 1GB de DDR3 (partagée avec le GPU)

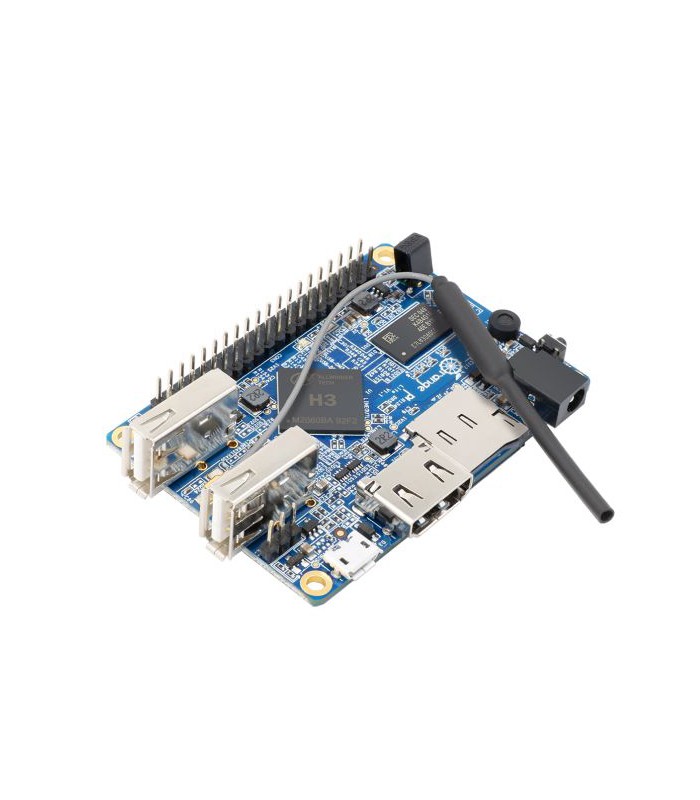

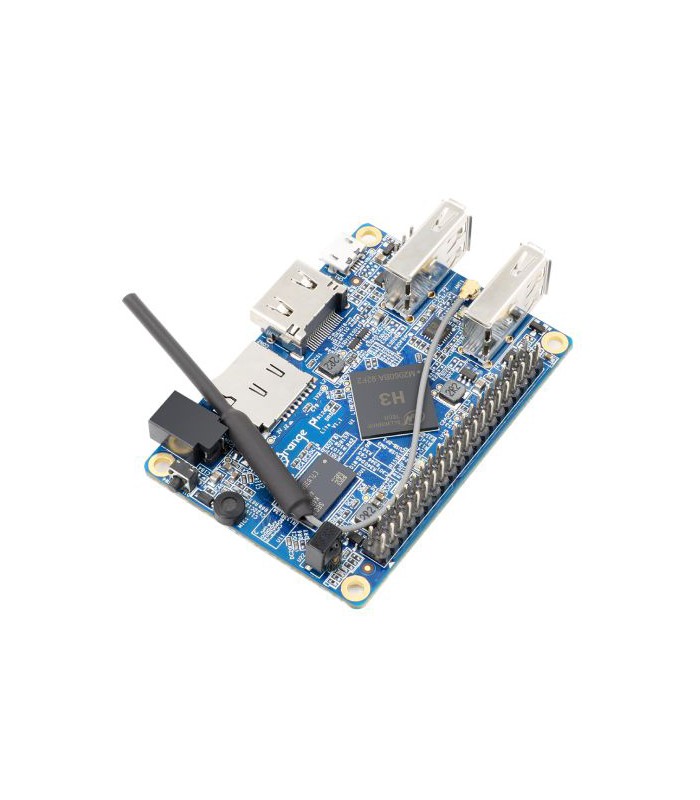

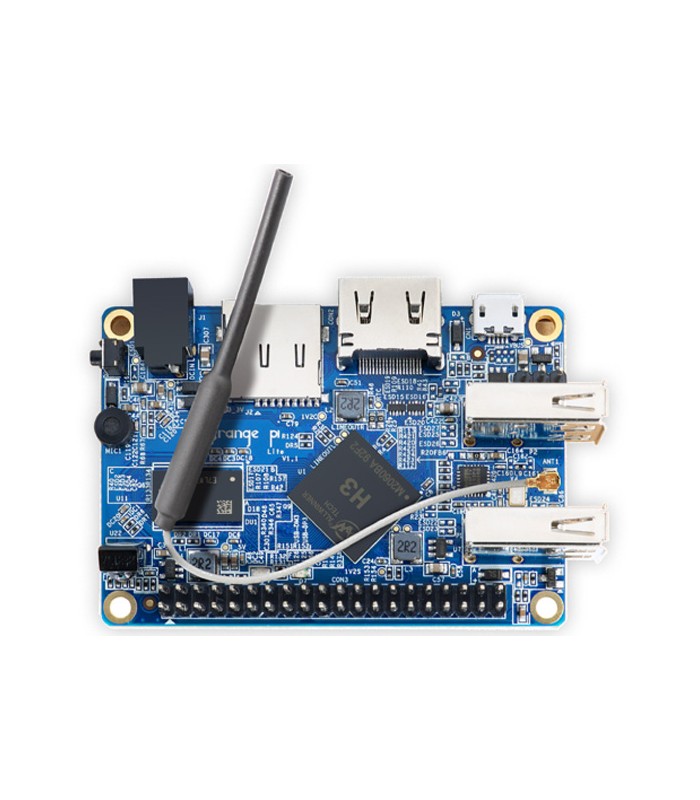

Orange Pi Lite est un ordinateur monocarte open-source avec WiFi sans fil. Il est très compact avec une dimension de 69X48mm.
Lire la suiteShow lessProducteur: Orange
Mémoire (SDRAM) : 1GB de DDR3 (partagée avec le GPU)
Orange Pi Lite est un ordinateur monocarte open-source avec WiFi sans fil. Il est très compact avec une dimension de 69X48mm.
89,66 €
(tax excl.)
109,39 €
TTC
Condition
Neuf
Référence:
RBOPL1GB
Marque:
Ajouter à la liste de souhaits
It uses the Allwinner H3 SoC with Quad-core Cortex-A7, and has 1GB DDR3 SDRAM. It can run Android 4.4,Ubuntu,Debian image. Orange Pi Lite offers a range of different ports, including HDMI output, 40pin headers,USB 2.0, CSI camera port, TF card slot, etc. It is powered through DC.
Orange Pi Lite is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU:
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB)
Wifi Antenna: Yes
Video Input
- A CSI input connector Camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Audio Input
- MIC
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
Audio Output
- HDMI
Power Source: DC input, USB OTG input don't supply power
USB 2.0 Ports: Two USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, Ground.
LED: Power led & Status led
Key: POWER
Supported OS: Android Lubuntu, Debian Image

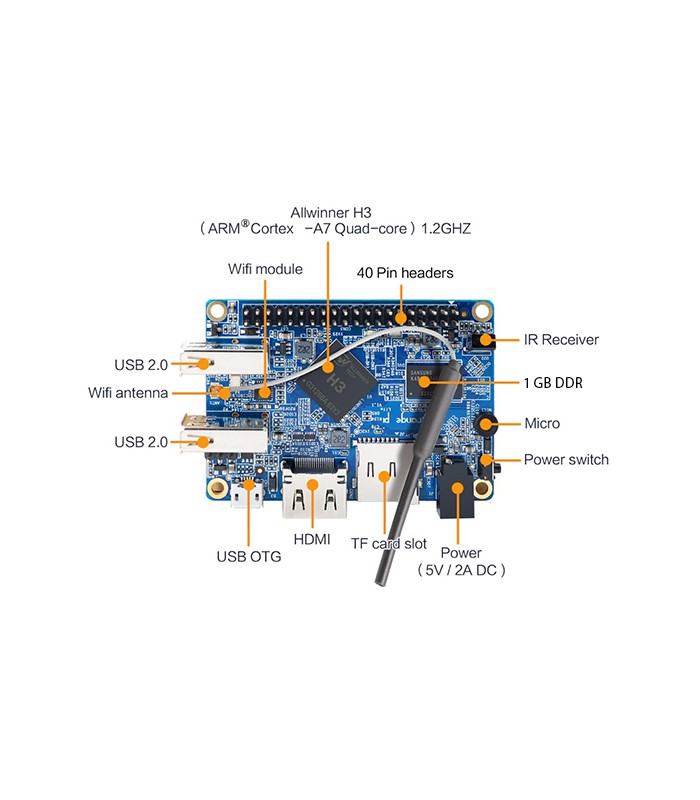

Interface definition:
Product size: 69 mm × 48mm
Weight: 60g
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB)
Wifi Antenna: Yes
Video Input
- A CSI input connector Camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Audio Input
- MIC
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
Audio Output
- HDMI
Power Source: DC input, USB OTG input don't supply power
USB 2.0 Ports: Two USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, Ground.
LED: Power led & Status led
Key: POWER
Supported OS: Android Lubuntu, Debian Image
Interface definition:
Product size: 69 mm × 48mm
Weight: 60g
