8,96 €
(tax excl.)
10,93 €
TTC
ErreBi code: 20955Producteur code: 2403Producteur: V-TACVendu au mètre

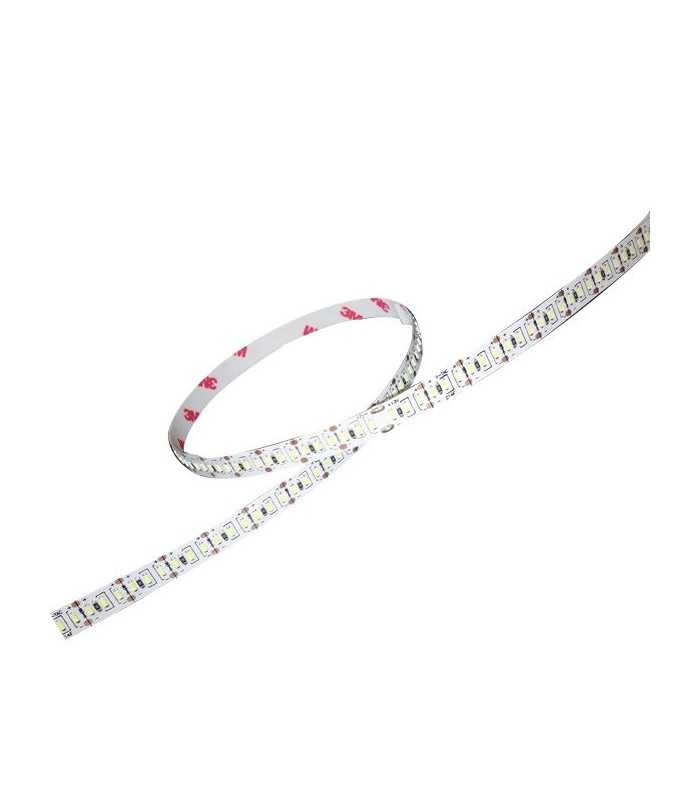

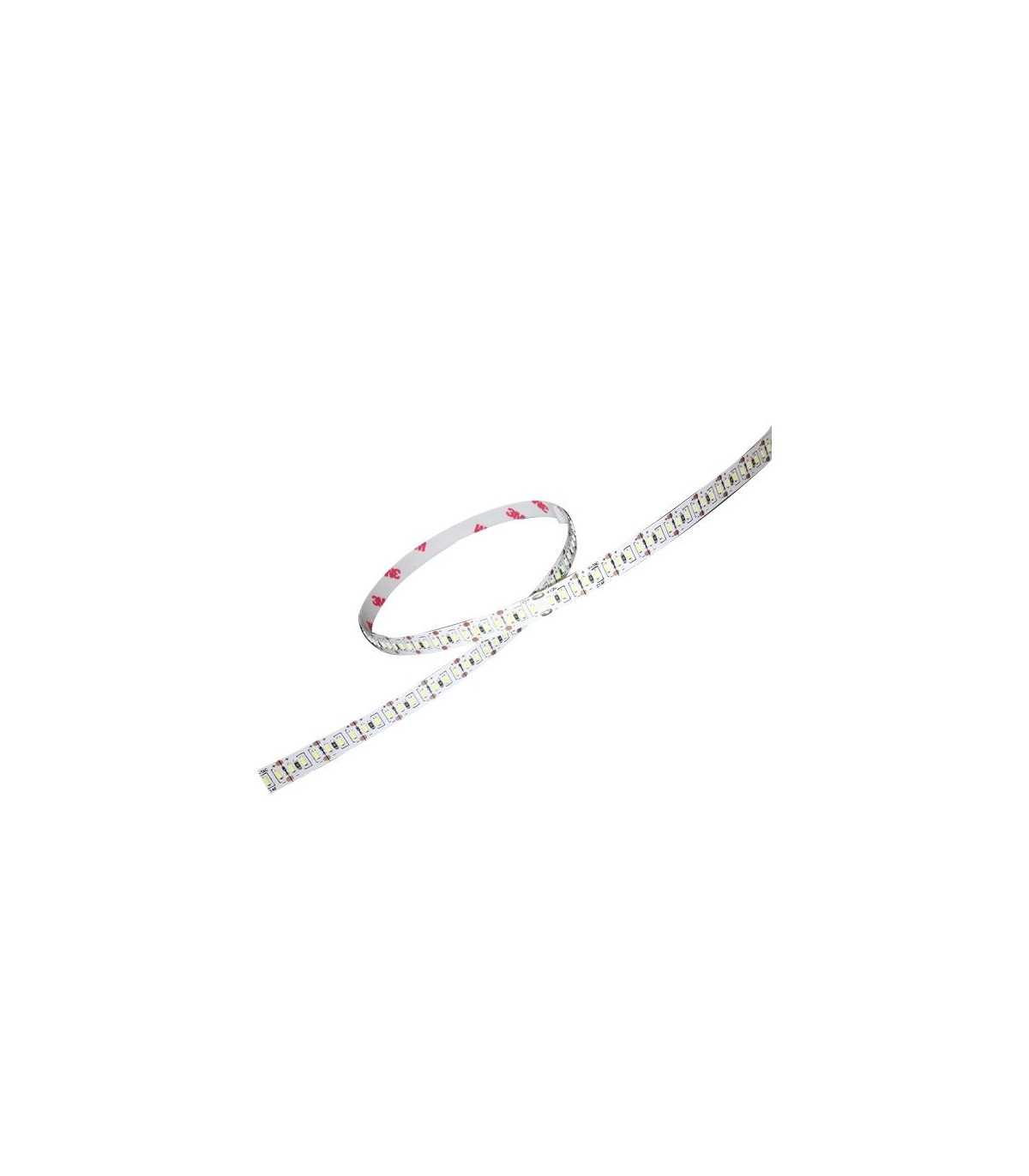

Bande LED SMD 3014 204 LED 3000K° IP20 Bobine
ErreBi code: 20956
Producteur code: 2404
Producteur: V-TAC
Vendu au mètre
Lire la suiteShow lessProducteur code: 2404
Producteur: V-TAC
Vendu au mètre
6,58 €
(tax excl.)
8,03 €
TTC
Condition
Neuf
Référence:
RB2404
Marque:
Ajouter à la liste de souhaits
General Information
LED Type: SMD3014
Lifespan: >20 000 hrs
Electrical Data
Wattage: 22W
Current: 1.5A/m.
Voltage: 12V
Light technical data
Color: Warm White
Color Temperature: 2700K
Luminous flux: 2040 LM/m.
LED Quantity: 204 LED/m.
LM per LED: 10
Beam angle: 120 °
Body details
Material: PCB
Body Colour: White
Capabilities
Dimmable: No
IP Rating: IP20
Cut Points: Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON: 0.001 sec (instant on)
Color stability: <6
Declared peak intensity in candelas (cd): /
On/Off cycles: 15000
Working conditions: Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimensions
Width: 10 mm
Product Data
Item Weight: 0,03
Item Volume: 0,00016
Certificates & standards
Energy efficiency class: A
Certification: CE, EMC, ROHS
Additional
Waranty: 2 years
Lire la suiteShow less
LED Type: SMD3014
Lifespan: >20 000 hrs
Electrical Data
Wattage: 22W
Current: 1.5A/m.
Voltage: 12V
Light technical data
Color: Warm White
Color Temperature: 2700K
Luminous flux: 2040 LM/m.
LED Quantity: 204 LED/m.
LM per LED: 10
Beam angle: 120 °
Body details
Material: PCB
Body Colour: White
Capabilities
Dimmable: No
IP Rating: IP20
Cut Points: Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON: 0.001 sec (instant on)
Color stability: <6
Declared peak intensity in candelas (cd): /
On/Off cycles: 15000
Working conditions: Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimensions
Width: 10 mm
Product Data
Item Weight: 0,03
Item Volume: 0,00016
Certificates & standards
Energy efficiency class: A
Certification: CE, EMC, ROHS
Additional
Waranty: 2 years
RB2404
Data sheet
- Type de produit
- Bande de LED
- Type de LED
- SMD 3014
- vie médias
- > 20.000 h
- Watts
- 18W
- Ampérage
- 1.5A/m
- Voltage/Fréquence
- DC: 12V
- Couleur Lumière/Température
- 3000K°, Blanc Chaud
- Quantité de LED
- 204 LED/m
- Lumens pour LED
- 9-11 lm
- Angle de faisceau
- 120°
- Flux lumineux
- 1700 lm/m
- Matériel
- PCB
- Couleur
- Blanc
- Dimmable
- Oui
- Protection IP
- IP20
- Température de fonctionnement
- -20°C à +45°C
- Dimensions
- 10 mm
- code modèle
- VT-3014 IP20
- Classe d'efficacité énergétique
- A+
- Certificat
- CE, EMC, ROHS
- Garantie
- 2 Ans
- Minimale commande
- 5
- Unité de mesure
- mètres
Specific References
- EAN-13
- 3800230628060
