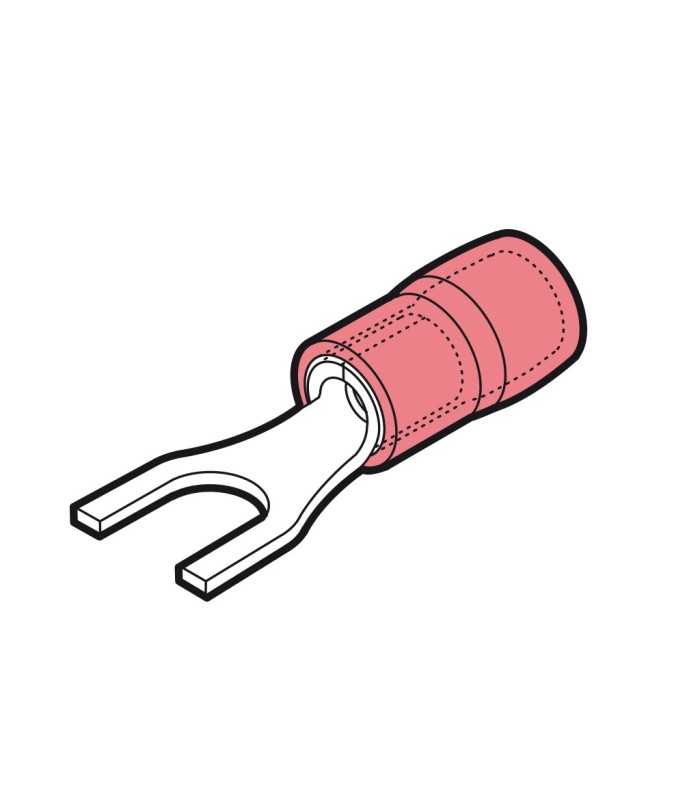

Cosse de câble Forche 1,5 mm Rouge Preisolees Trou 3 Renforcé

Terminals are designed to offer improved mechanical and electrical integrity under heavy-duty application.
This is achieved via a Copper sleeve located between the Copper barrel and Polyamide insulation of the terminal.

Then, during crimping, the insulation of the conductor is integrated into the crimp due to the Copper sleeve being deformed around it to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations (e.g: mobile plant, vehicles, moving components).

Technical details
Terminals are manufactured from electrolytic Copper Cu-ETP CWOO4A according to UNI EN 1652:1999 and are tin plated to a minimum thickness of 3m.

Main characteristics of the PA6.6 sleeve:
- DIELECTRIC STRENGTH (kV/mm) : >16,5
- VOLUME RESISTIVITY (O/cm) : >1013
- MAX OPERATING TEMPERATURE (°C) : 105
- FLAMMABILITY’ (UL-94) : V-2
- DENSITY (g/cm3) : 1,14
- WATER ABSORPTION (%) : 1,5
- BREAKING LOAD (N/mm2) : 77

Terminals can be stored at a minimum temperature not below - 40°C.

Technical characteristics
Easy entry: yes
Halogen Free: yes
UL94 class: V2
Min operating temperature range: -20 °C
Max operating temperature range: 105 °C
Max operating temperature range (surge): 110 °C
Dimensional form: Fork/spade terminal
Material (Body): ETP Copper elettrolyticaly tinned
Material (Partially reinforced): Polyamide PA6.6
