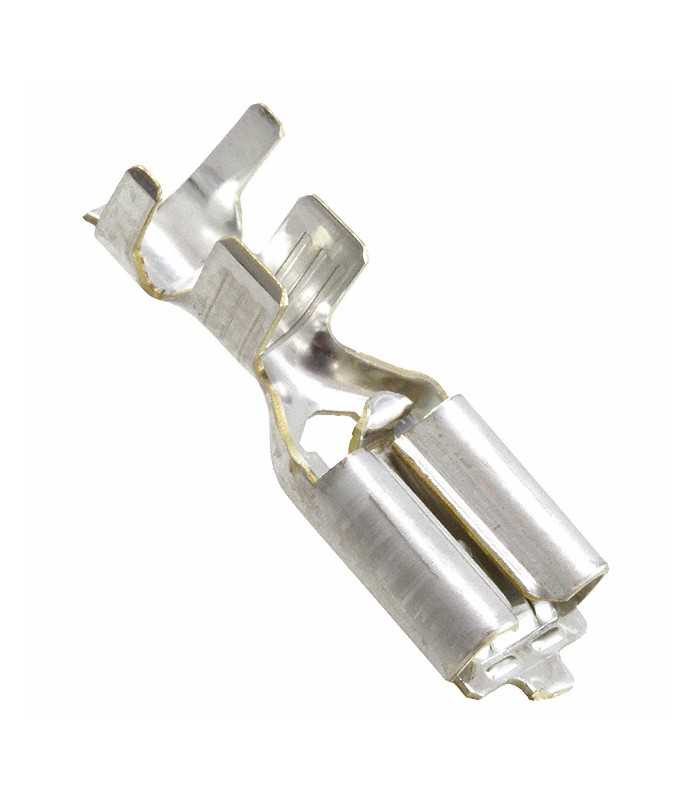

Borne Positive Lock 6,3X0,8 Series 250 femelle AWG 15-10

Product Type Features
- Terminates To: Wire & Cable
- FASTON: No
- Disconnect Type: Quick Disconnect
- Insulated: No
- Wire/Cable Type: Discrete Wire
- Discrete Wire Type: Stranded
- Wire Stop: No

Electrical Characteristics
- Voltage (Max)(V): 250

Body Features
- Fully Insulated: No
- Plating Material: Pre-Tin

Contact Features
- Terminal & Splice Style: Receptacle
- Terminal Type: Receptacle
- Terminal Orientation: Straight
- Barrel Type: Open
- Contact Base Material: Brass
- Crimp Type: F-Crimp

Mechanical Attachment
- Wire Insulation Support: With

Dimensions
- Wire Size (AWG): 15 – 10
- Wire Size (mm²): 1.65 – 5.26
- Mating Tab Width: 6.35 mm [0.25 in]
- Mating Tab Thickness: 0.81 mm [0.032 in]
- Accepts Wire Insulation Diameter Range: 3 – 5.1 mm [0.118 – 0.2 in]
- Receptacle Stock Thickness: 0.41 mm0[0.016 in]
- Wire Insulation Diameter (Max): 5.1 mm [0.2 in]
- Overall Length: 21.2 mm [0.834 in]

Usage Conditions
- Operating Temperature Range: -40 – 105°C [-40 – 221°F]
