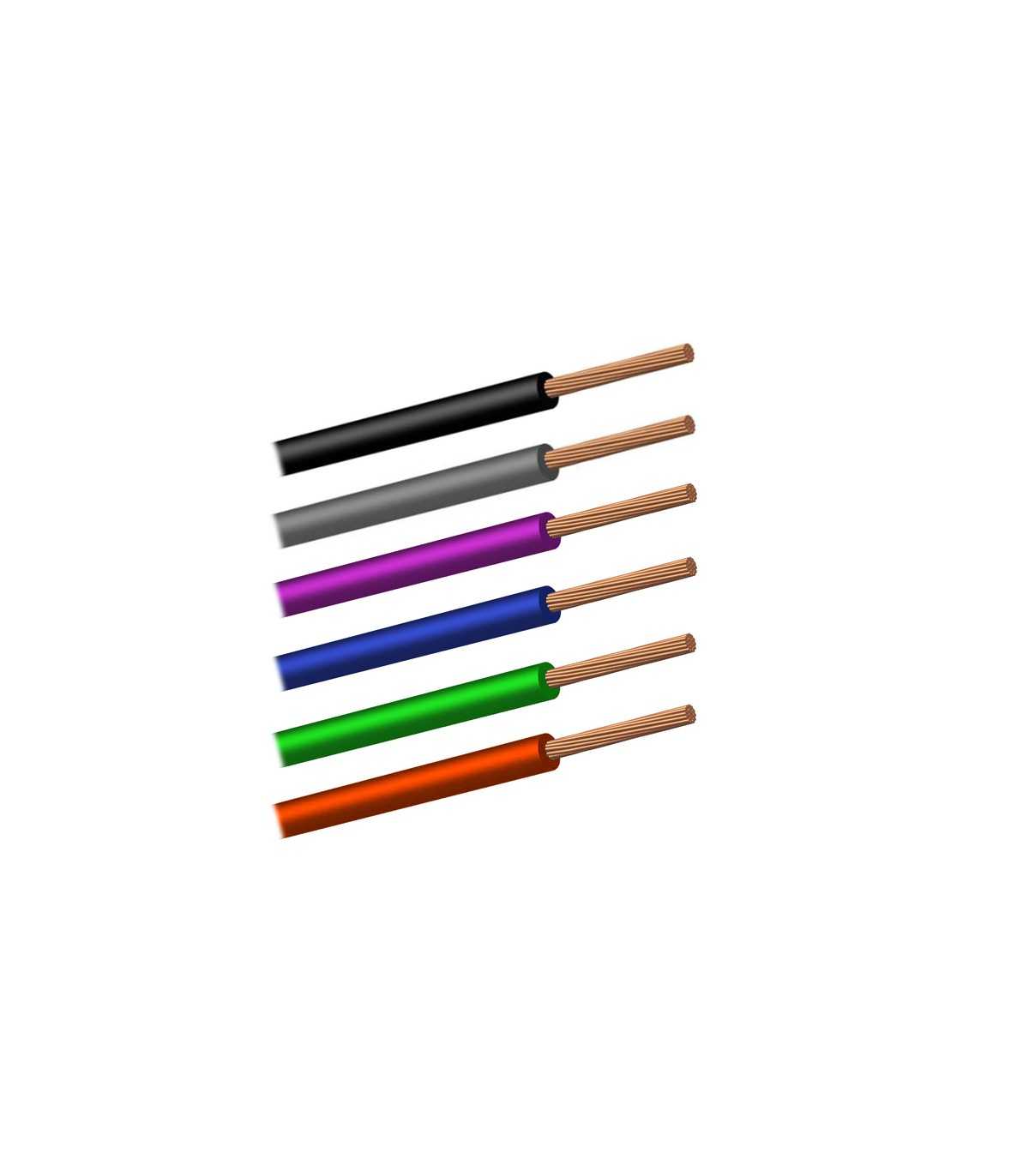

Câble Fil Unipolaire H07Z-K sec. 1,00 mmq Blanc

Flexible single-core cable with thermoplastic insulation, halogen-free

Conductor
Plain copper flexible wire, class 5

Insulation
LS0H compound, TI7 quality (LS0H = Low Smoke Zero Halogen)

Cores colour
All single colours and yellow/green combination allowed

TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 150°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For environments containing large number of people when is needed protection against emission of smoke and toxic corrosive gases in case of fire, like schools, offices, theaters, subways, hospitals, worship places, shopping centers and places of public entertainment. Allowed for voltages up to 1000 V a.c. and 750 V d.c., for fixed and protected laying inside lighting devices and switch/control systems. Suitable for installation in recessed or surface mounted ducts for signalling and control circuits. (ref. CEI 20-40, HD 516)
