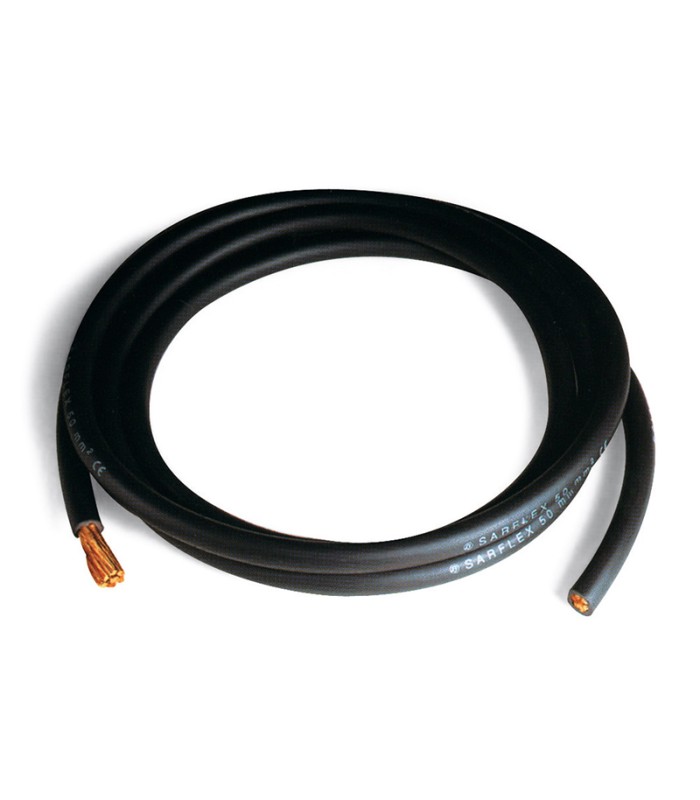

Câble fil unipolaire machine soudage sec. 16,00 mmq noir
Code ErreBi: 23182
Vendu au mètre
Lire la suiteShow lessVendu au mètre
9,42 €
(tax excl.)
11,49 €
TTC
Condition
Neuf
Référence:
RBCVSLD16NR
Marque:
Ajouter à la liste de souhaits
Cables for welding machines
material: PVC
tipology: SINGLECORE
Applications: Welding Cables
Conditions of employment
For secondary side connection of powers sources for hand or automatic metal-arc welding for
secondary voltage typical of welding equipment.
Type of electrical conductor: Flexible red copper
Main rule: -
Self-extinguishing: EN 60332-1-2 , IEC 60332-1-2
Description
PVC insulated cables for welding machines.
Review number:n. 4 - 23/2/2011
Nominal tension: 450/750 V
Type of outer sheath: TM2
Color of the outer sheath: Black
Operating temperature: +5° C | +70° C
Short circuit temperature: 160° C °C
Test voltage: 2500 V
Cable marking: ELFLEX (sect) mm² CE
Minimum radius of curvature: For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation. For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation.
Insulation tolerance: ± 0,1
Sheath tolerance: ± 0,2
Lire la suiteShow less
material: PVC
tipology: SINGLECORE
Applications: Welding Cables
Conditions of employment
For secondary side connection of powers sources for hand or automatic metal-arc welding for
secondary voltage typical of welding equipment.
Type of electrical conductor: Flexible red copper
Main rule: -
Self-extinguishing: EN 60332-1-2 , IEC 60332-1-2
Description
PVC insulated cables for welding machines.
Review number:n. 4 - 23/2/2011
Nominal tension: 450/750 V
Type of outer sheath: TM2
Color of the outer sheath: Black
Operating temperature: +5° C | +70° C
Short circuit temperature: 160° C °C
Test voltage: 2500 V
Cable marking: ELFLEX (sect) mm² CE
Minimum radius of curvature: For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation. For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation.
Insulation tolerance: ± 0,1
Sheath tolerance: ± 0,2
RBCVSLD16NR
Data sheet
- Type de produit
- Câble machines souder
- Couleur
- Noir
- Diamètre externe
- 8.70 mm
- Voltage
- 750V
- Température de fonctionnement min.
- +5°C
- Température de fonctionnement max.
- +70°C
- Matériau d'isolation
- PVC
- Conducteur (matériel)
- Cuivre rouge
- Section de câble mmq
- 16.00 mmq
- Taille des brins
- 0.31 mm
- Blindage
- Non
- Test de tension
- 2500V
- Résistance à la flamme
- CEI 60332-1-2
- Type d'emploi
- Systèmes de soudage
- Résistance du conducteur
- <= 1.28 Ohm/Km
- Minimale commande
- 1
- Unité de mesure
- mètre
