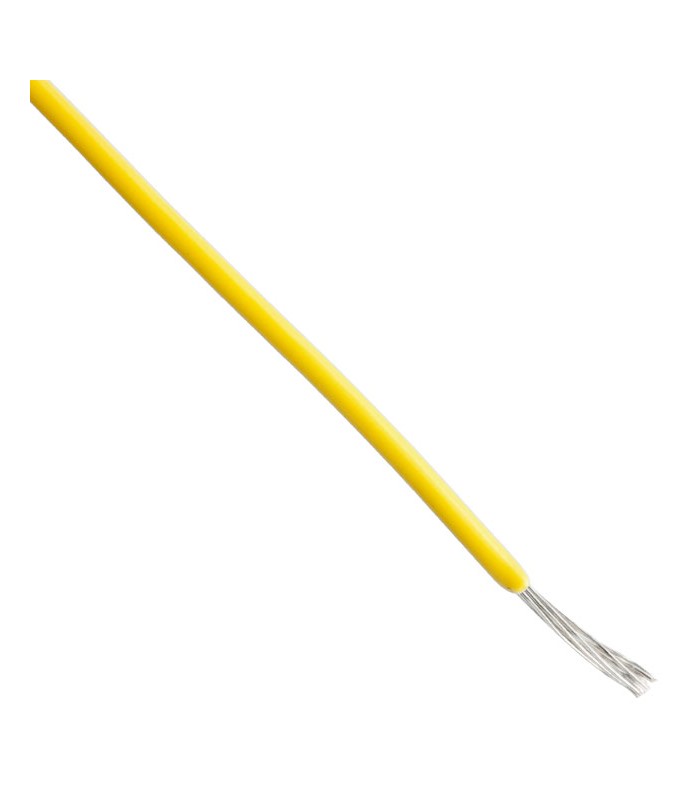

Câble Style 1213 24 awg Téflon PTFE 600V jaune
Code ErreBi: 25820
Code Producteur: 5854/7 YL
Producteur: Alpha Wire
Vendu au mètre
Lire la suiteShow lessCode Producteur: 5854/7 YL
Producteur: Alpha Wire
Vendu au mètre
3,28 €
(tax excl.)
4,00 €
TTC
Condition
Neuf
Référence:
RBCVS121324AGL
Marque:
Ajouter à la liste de souhaits
The PTFE wire with high temperature resistance, chemical and solvent resistance and excellent electrical properties. This 600V PTFE wire can be used at temperatures ranging from -60°C to + 200°C depending on the application.
Silver-plated braided copper conductors that protect wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and finish.
PTFE insulation.
The connecting wire can be used for a wide range of applications, be it in a control cabinet, high temperature furnace or specialized machine tool.
Conductor section: 0.23 mm2
Sheath color: Yellow
AWG: 24 AWG
Conductor strands: 7 / 0.20 mm
Insulation material: PTFE
Outer diameter: 1.12mm
Rated voltage: 600V
Conductor material: Silver-plated copper
Wire type: UL1213
Operating temperature: -60 ° C to + 200 ° C
Shield type: Unshielded
Insulation thickness: 0.3mm
Lire la suiteShow less
Silver-plated braided copper conductors that protect wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and finish.
PTFE insulation.
The connecting wire can be used for a wide range of applications, be it in a control cabinet, high temperature furnace or specialized machine tool.
Conductor section: 0.23 mm2
Sheath color: Yellow
AWG: 24 AWG
Conductor strands: 7 / 0.20 mm
Insulation material: PTFE
Outer diameter: 1.12mm
Rated voltage: 600V
Conductor material: Silver-plated copper
Wire type: UL1213
Operating temperature: -60 ° C to + 200 ° C
Shield type: Unshielded
Insulation thickness: 0.3mm
RBCVS121324AGL
Data sheet
- Type de produit
- Câble UL
- Couleur
- Jaune
- Diamètre externe
- 1.12 mm
- Voltage
- 600V
- Température de fonctionnement min.
- -60°C
- Température de fonctionnement max.
- +200°C
- Matériau d'isolation
- Polytétrafluoroéthylène (PTFE)
- Conducteur (matériel)
- Cuivre Argenté
- Section de câble mmq
- 0.23 mmq
- Section de câble AWG
- 24 AWG
- Nombre de brins
- 7
- Taille des brins
- 0,20 mm
- Blindage
- Non
- Test de tension
- 2000V
- Style
- UL Style 1213
- Type d'emploi
- Câblage Interne
- Minimale commande
- 1
- Unité de mesure
- mètre
