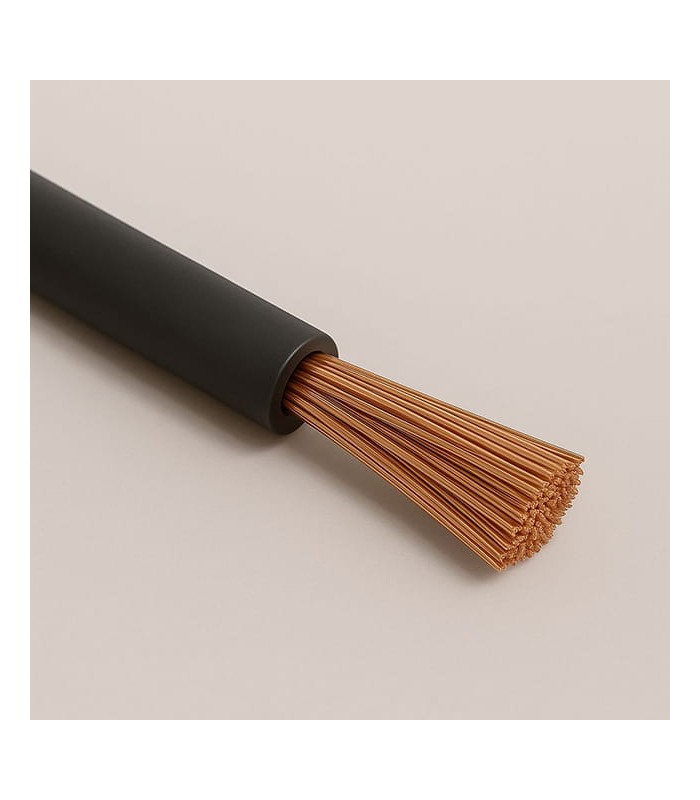

Câble Fil Unipolaire H05V2-K sec. 0,50 mmq Noir

Flexible single-core cable for internal wiring, for maximum conductor temperature of 90°C.
Conductor: Plain copper flexible wire, class 5
Insulation: PVC compound, TI3 quality
Cores colour: All single colours and two-colour combinations allowed

TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 300/500 V
Maximum operating temperature: 90°C
Minimum operating temperature: -10°C
(without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For internal wiring and for fixed and protected installation inside lighting equipment and for applications involving functioning at high temperatures. Not to be used in contact with surfaces having a temperature higher than 85°C. Not suitable for fixed installations in distribution systems. (ref. CEI 20-40, HD 516)
