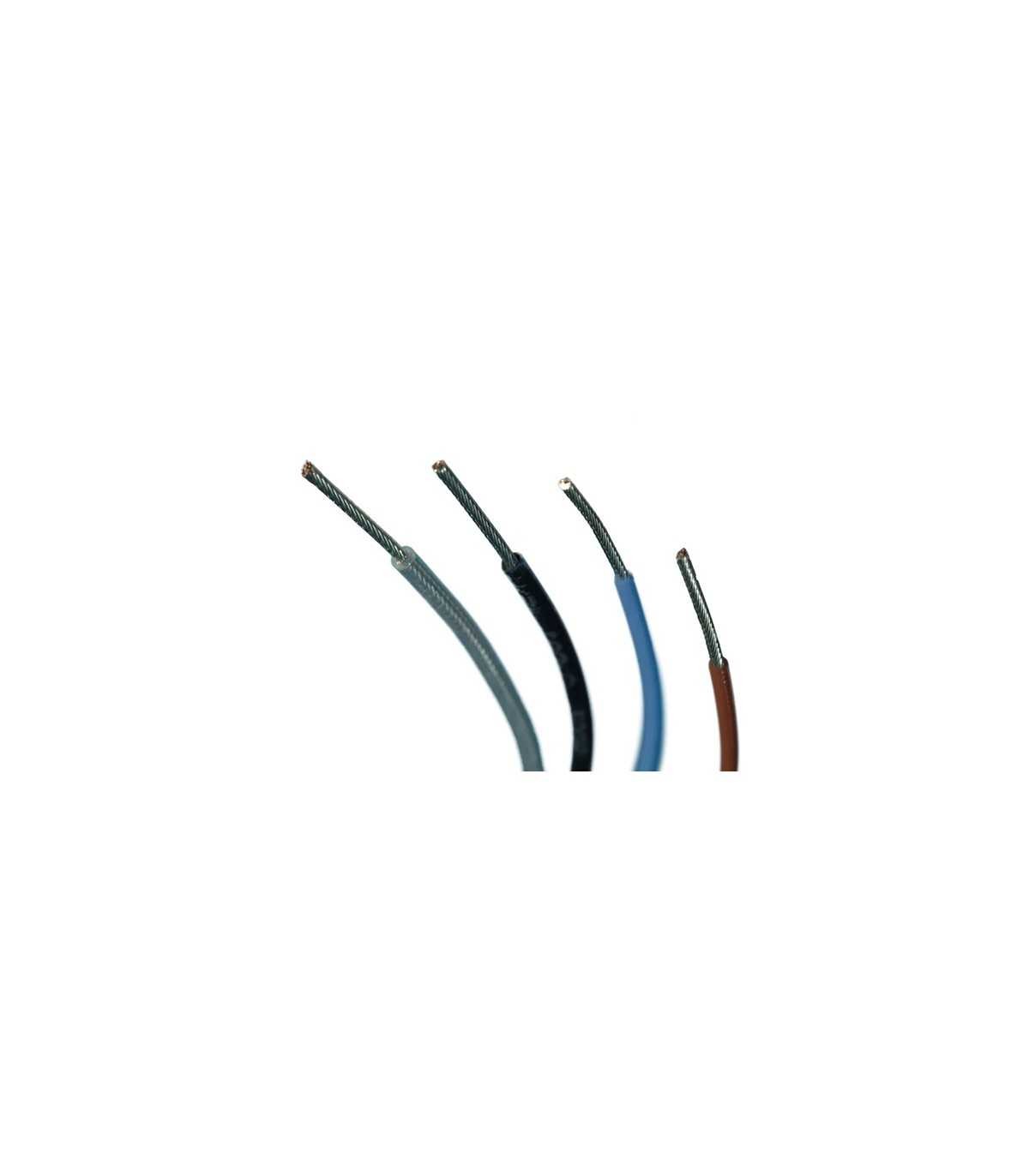

Câble monoconducteur en FEP homologué VDE Sec. 0,35 mmq Bleu

CONDITIONS OF USE

To be used for fixed internal wiring of electrical equipment or lamps where the temperature on the conductor is not higher than the maximum permissible temperature. Installation in pipes, ducts or conduits is permitted.

TECHNICAL CHARACTERISTICS

Test voltage: 2000 V
Nominal voltage: 300/500 V
VDE: Reg. Nos. 7027, 7909
Short circuit temperature: 300°C
Operating temperature: 180°C, 200°C or 250°C
Minimum bending radius: 12 x D
Flame resistance: IEC 60332-1-2
Suitable for internal installation
Suitable for fixed installation

APPLICATIONS

VDE approved single-core flexible cable for high temperatures with
FEP insulation, suitable for internal wiring of electrical
equipment and lighting with a maximum conductor temperature
of 180 °C. Excellent resistance to industrial oils, exposure to
ozone and UV as well as to a wide range of chemical
substances
