0,66 €
(tax excl.)
0,81 €
TTC
Code ErreBi: 67629Vendu au mètre

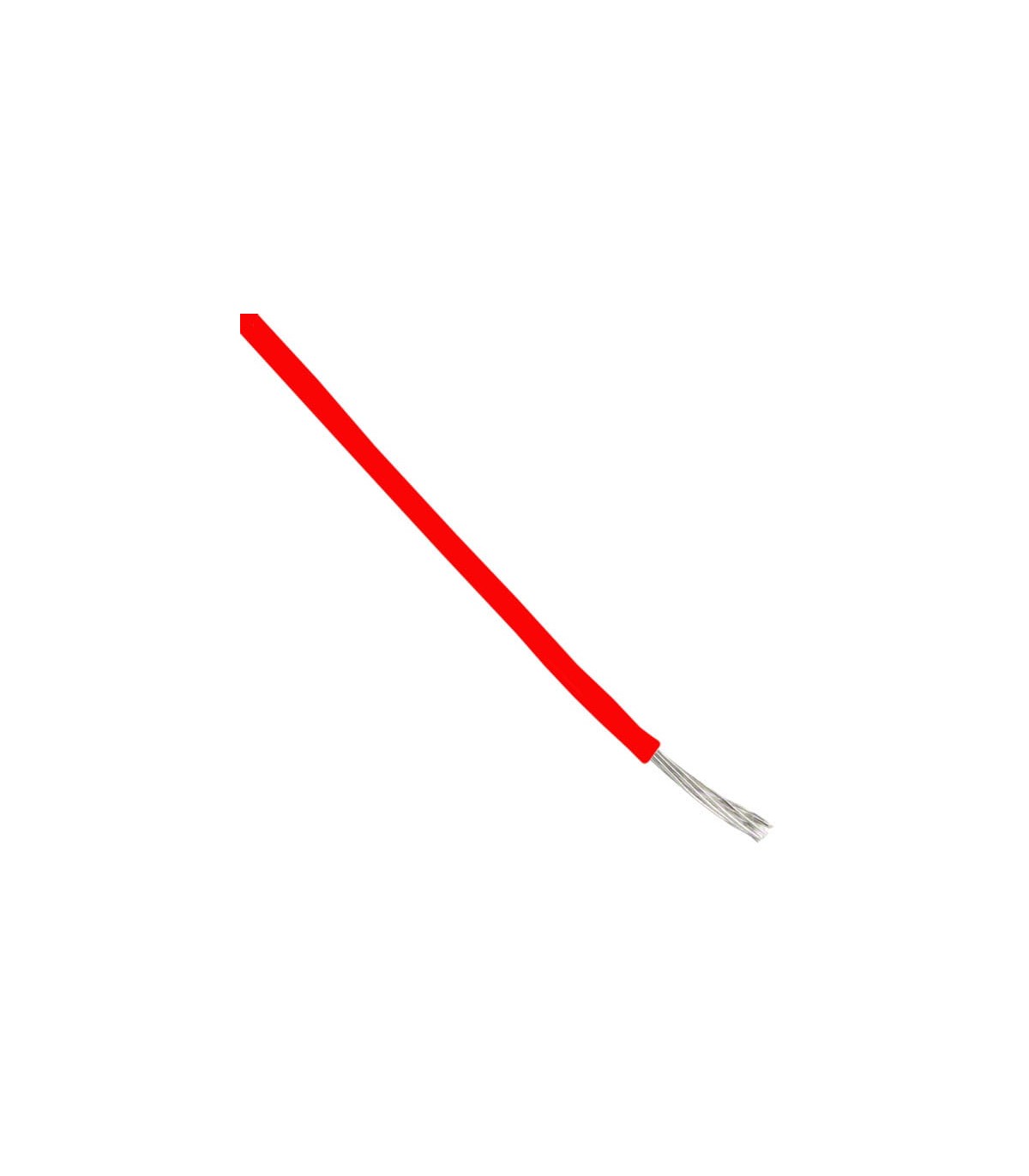

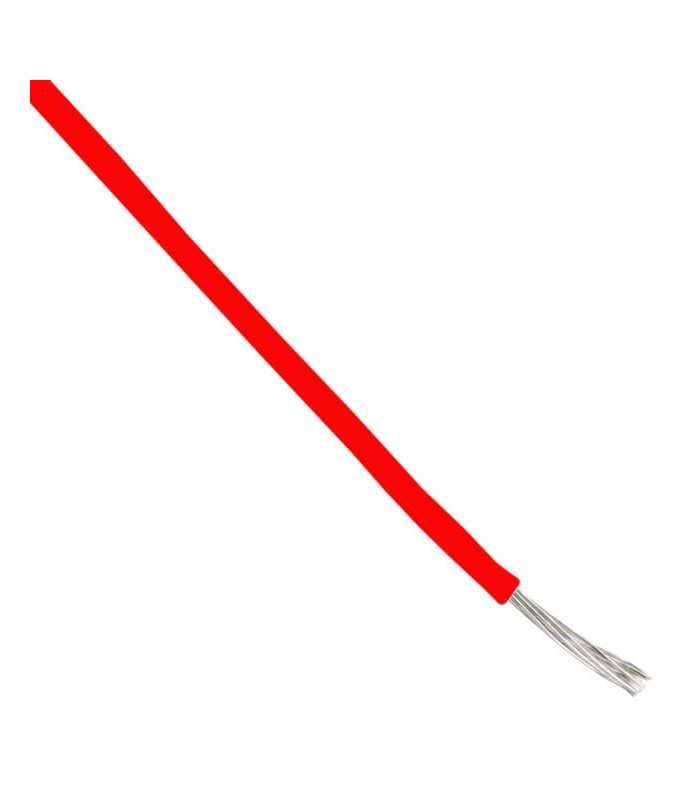

Câble monoconducteur en FEP homologué VDE Sec. 0,25 mmq Rouge
Code ErreBi: 40954
Vendu au mètre
Lire la suiteShow lessVendu au mètre
0,62 €
(tax excl.)
0,76 €
TTC
Condition
Neuf
Référence:
RBCV0.25FR5FRO
Marque:
Ajouter à la liste de souhaits
CONDITIONS OF USE
To be used for fixed internal wiring of electrical equipment or lamps where the temperature on the conductor is not higher than the maximum permissible temperature. Installation in pipes, ducts or conduits is permitted.
TECHNICAL CHARACTERISTICS
Test voltage: 2000 V
Nominal voltage: 450/750 V
VDE: Reg. Nos. 7027, 7909
Short circuit temperature: 300°C
Operating temperature: 180°C, 200°C or 250°C
Minimum bending radius: 12 x D
Flame resistance: IEC 60332-1-2
Suitable for internal installation
Suitable for fixed installation
APPLICATIONS
VDE approved single-core flexible cable for high temperatures with
FEP insulation, suitable for internal wiring of electrical
equipment and lighting with a maximum conductor temperature
of 180 °C. Excellent resistance to industrial oils, exposure to
ozone and UV as well as to a wide range of chemical
substances
Lire la suiteShow less
To be used for fixed internal wiring of electrical equipment or lamps where the temperature on the conductor is not higher than the maximum permissible temperature. Installation in pipes, ducts or conduits is permitted.
TECHNICAL CHARACTERISTICS
Test voltage: 2000 V
Nominal voltage: 450/750 V
VDE: Reg. Nos. 7027, 7909
Short circuit temperature: 300°C
Operating temperature: 180°C, 200°C or 250°C
Minimum bending radius: 12 x D
Flame resistance: IEC 60332-1-2
Suitable for internal installation
Suitable for fixed installation
APPLICATIONS
VDE approved single-core flexible cable for high temperatures with
FEP insulation, suitable for internal wiring of electrical
equipment and lighting with a maximum conductor temperature
of 180 °C. Excellent resistance to industrial oils, exposure to
ozone and UV as well as to a wide range of chemical
substances
RBCV0.25FR5FRO
Data sheet
- Type de produit
- Câble FEP
- Couleur
- Rouge
- Diamètre externe
- 1.10 mm
- Voltage
- 450/750V
- Température de fonctionnement min.
- -55°C
- Température de fonctionnement max.
- +180°C
- Matériau d'isolation
- Fluorure de Propylène et d'Ethylène (FEP)
- Conducteur (matériel)
- Cuivre
- Section de câble mmq
- 0.25 mmq
- Section de câble AWG
- 18 AWG - 22 AWG
- Blindage
- Non
- Test de tension
- 2000V
- Résistance à la flamme
- CEI 60332-1-2
- Type d'emploi
- Câblage Interne
- Résistance du conducteur
- <= 86.0 Ohm/Km
- Minimale commande
- 5
- Unité de mesure
- mètres
