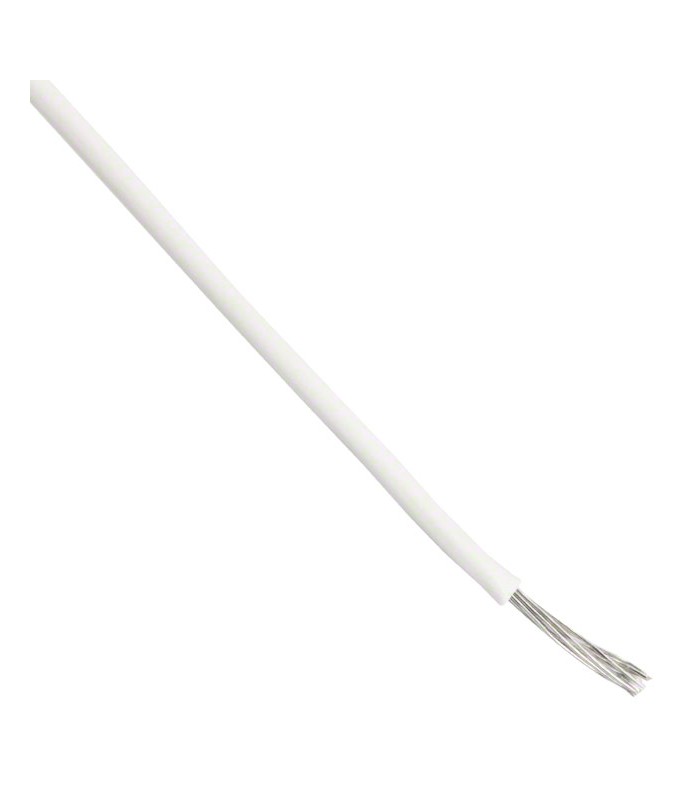

Câble Fil Unipolaire UL Style 1213 AWG 22 Teflon PTFE 600V blanc
Code ErreBi: 66909
Code Producteur: 5855/7 WH005
Producteur: Alpha Wire
Vendu au mètre
Lire la suiteShow lessCode Producteur: 5855/7 WH005
Producteur: Alpha Wire
Vendu au mètre
6,36 €
(tax excl.)
7,76 €
TTC
Condition
Neuf
Référence:
RBCVS121322ABNAW
Marque:
Ajouter à la liste de souhaits
PTFE wire with high temperature resistance, chemical and solvent resistance and excellent electrical properties. This 600V PTFE wire can be used in temperatures ranging from -60°C to +200°C depending on the application.
Silver plated stranded copper conductors protect the wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and terminate.
PTFE insulation.
The bonding wire can be used for a wide range of applications, whether it is a control cabinet, a high temperature furnace or a specialized machine tool.
Conductor Section: 0.35 mm2
Sheath Color: White
AWG: 22 AWG
Insulation Material: PTFE
Outer Diameter: 1.27mm
Rated Voltage: 600 V
Conductor Material: Silver-Plated Copper
Wire Type: UL1213
Operating Temperature: -60°C to +200°C
Shield Type: Unshielded
Lire la suiteShow less
Silver plated stranded copper conductors protect the wires from corrosion and increase efficiency in hot and humid environments.
Easy to handle, strip and terminate.
PTFE insulation.
The bonding wire can be used for a wide range of applications, whether it is a control cabinet, a high temperature furnace or a specialized machine tool.
Conductor Section: 0.35 mm2
Sheath Color: White
AWG: 22 AWG
Insulation Material: PTFE
Outer Diameter: 1.27mm
Rated Voltage: 600 V
Conductor Material: Silver-Plated Copper
Wire Type: UL1213
Operating Temperature: -60°C to +200°C
Shield Type: Unshielded
RBCVS121322ABNAW
Data sheet
- Couleur
- Blanc
- Voltage
- 600V
- Température de fonctionnement min.
- -60°C
- Température de fonctionnement max.
- +200°C
- Matériau d'isolation
- Polytétrafluoroéthylène (PTFE)
- Conducteur (matériel)
- Cuivre Argenté
- Section de câble AWG
- 22 AWG
- Blindage
- Non
- Style
- UL Style 1213
- Minimale commande
- 1
- Unité de mesure
- mètre
