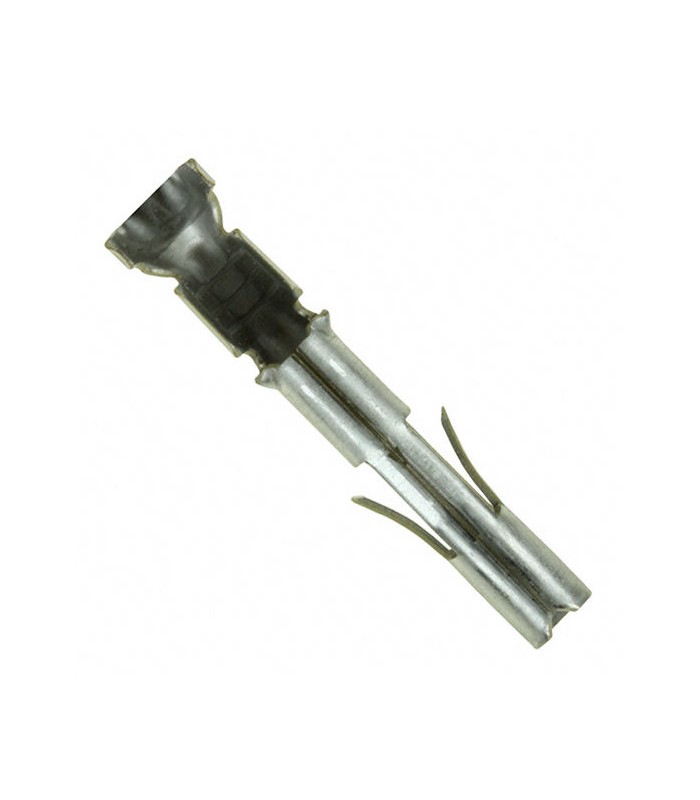

Borne Mate n Lok Femelle Awg 24 -18

Product Type Features
Product Type: Contact

Electrical Characteristics
Contact Current Rating (A): 19
Operating Voltage (VAC): 600

Contact Features
Contact Type: Socket (Female)
Contact Base Material: Brass
Contact Mating Area Plating Material: Pre-Tin
Contact Termination Area Plating Material: Pre-Tin
Contact Crimp Area Plating Material: Pre-Tin
Contact Design: Solid

Termination Features
Wire/Cable Size (AWG): 24 – 18
Wire/Cable Size (mm²): .2 – .8
Termination Type: Crimp

Mechanical Attachment
Contact Retention in Housing: With
Contact Retention in Housing Type: Locking Lance

Operation/Application
Circuit Application: Power
Applies To: Wire/Cable
Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]
Connector System: Wire-to-Wire

Industry Standards
Glow Wire Rating: Standard Part - Not Glow Wire
UL File Number: E28476
CSA Rating: Certified
UL Rating: Recognized
CSA File Number: LR 16455
Agency/Standard: CSA, UL
VDE Tested: Yes

Other
For Multiple Crimp: No
For Use With: Splash Proof Seal and Universal Mate-N-LOK Plug and Cap Housing
Wire Type: Stranded
Wire/Cable Type: Discrete Wire
