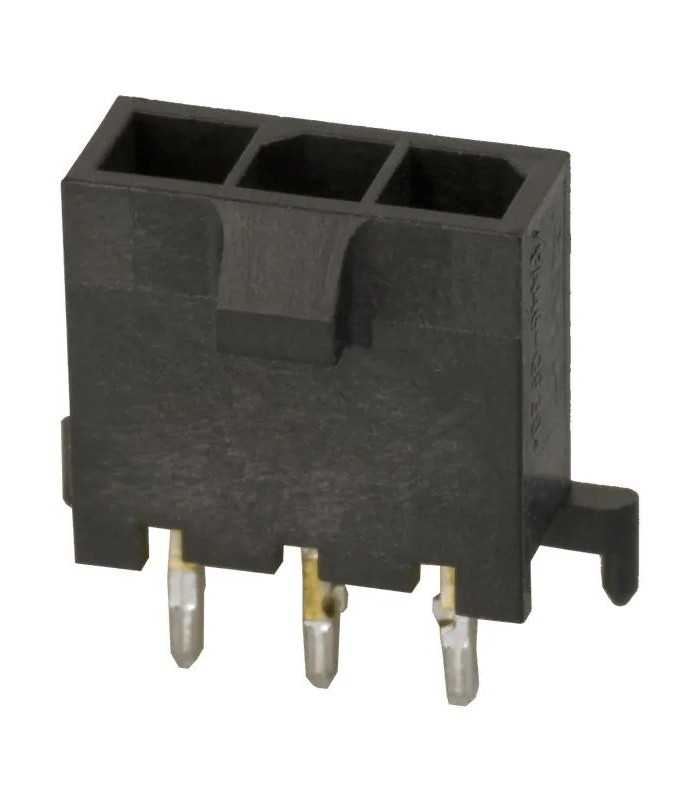

Connecteur Modu MTE mâle 3 Voies PCB

Product type features:
- Type of rectangular power connector: Header
- Connector and housing type: Plug
- Connector system: wire-to-board
- Sealable: No
- The connector and the contact end with: printed circuit

Configuration features:
- Number of positions: 3
- PCB mounting orientation: vertical
- Number of power positions: 3
- Number of lines: 1

electrical characteristics:
- Operating voltage (VAC): 250
- Operating voltage (VDC): 250

Contact characteristics:
- Rated contact current (max) A (A): 5
- Retention of contacts inside the accommodation: without
- Contact type: Pin
- PCB PCB Contact Termination Area Plating Material: Tin
- Contact mating area plating material: gold
- Thickness of the plating material of the contact mating area: .76 µm [30 µin]
- Contact termination area plating thickness: 2.54 µm [100 µin]
- Multiple contact types: Without
- Contact layout: online

Termination functions:
- Termination terminal and tail length: 3.18 mm [.125 in]
- PCB termination method: Through hole - Soldering

Mechanical attack:
- PCB Mount Retention Type: Bump Retention
- PCB mounting retention.: With
- Panel mount function: without
- PCB mounting alignment PCB: with
- Coupling alignment: with
- Coupling alignment type: Polarization
- Connector Mounting Type: Board Mount
- PCB Mount Alignment Type: Polarization
- Retention of coupling: with
- Coupling retention type: locking tab

Housing features:
- Centerline (pitch): 3 mm [.118 in]
- Housing color: black
- Housing material: high temperature nylon

Dimensions:
- Wire size (AWG): 30 - 20
- Wire size (mm²): .051 - .517
- Wire size (CMA): 100.5 - 1022
- Insulation diameter (max): 1.52 mm [1.52 in]
- PCB thickness (recommended): .06 mm [1.57 in]

Terms of use:
- Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]

Operation / Application:
- Circuit application: Power

Industry standard:
- UL flammability classification: UL 94V-0
