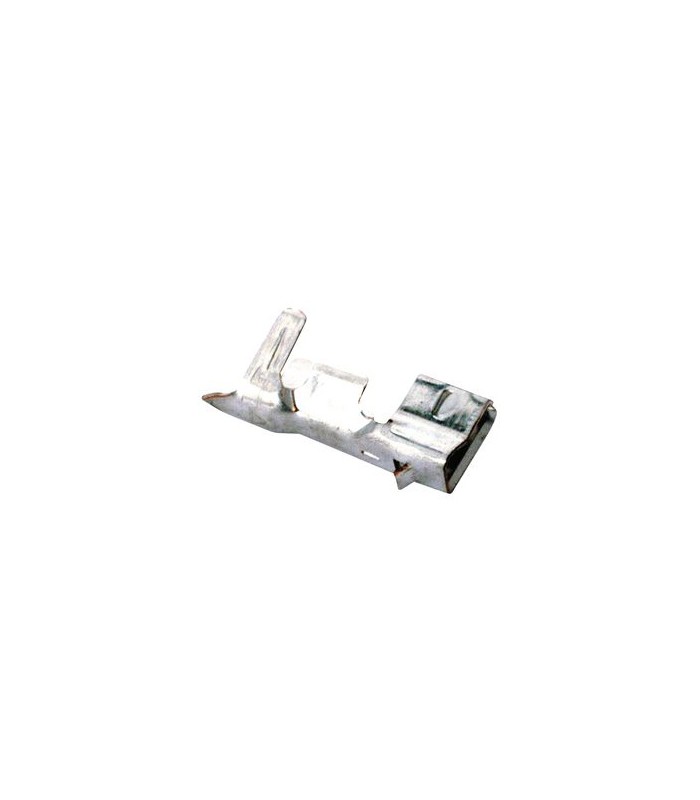

Borne Series CT Femelle

Product Type Features
Connector System: Wire-to-Board, Wire-to-Wire
Wire/Cable Type: Discrete Wire
Product Type: Contact
Applies To: Wire/Cable

Electrical Characteristics
Operating Voltage (VDC): 125
Insulation Resistance (MO): 1000
Operating Voltage (VAC): 125

Contact Features
Contact Type: Socket
Contact Mating Area Plating Material: Pre-Tin
Contact Current Rating (A): 4
Contact Base Material: Copper Alloy
Contact Shape: Rectangular
Contact Transmits (Typical): Signal (Data)
Contact Style: Dual Beam

Termination Features
Termination Method to Wire/Cable: Crimp
Crimp Area Plating Material: Pre-Tin

Mechanical Attachment
Mating Retention: Without

Dimensions
Wire/Cable Size (AWG): 26 – 22
Insulation Diameter: .93 – 1.5 mm [ .0366 – .059 in ]

Usage Conditions
Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Operation/Application
Internal/External: Internal
