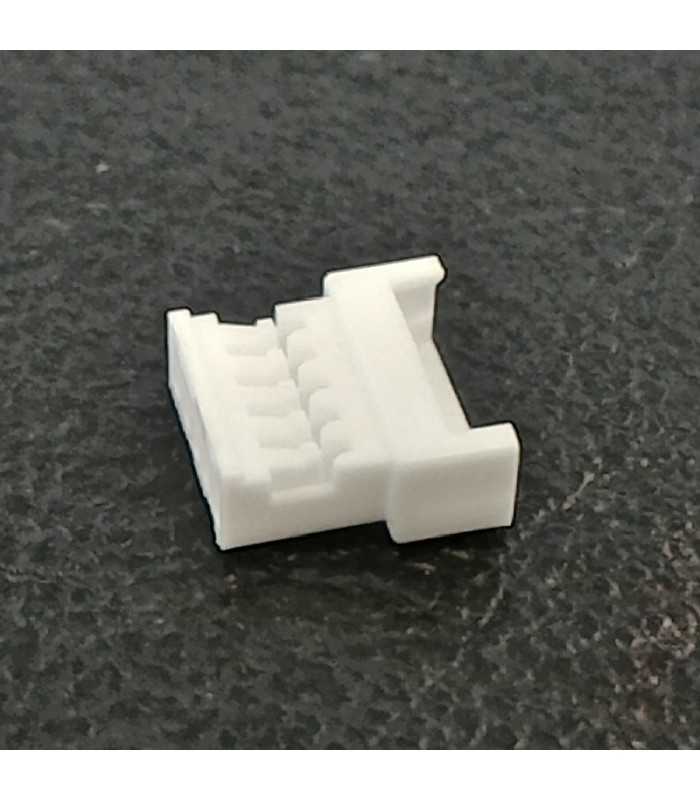

Connecteur PicoBlade mâle 5 Voies

Code ErreBi: 16943
Code Producteur: 51047-0500
Producteur: Molex
Lire la suiteShow less
0,27 € (tax excl.)
0,33 €

Réductions pour quantités

Quantité Prix unitaire You Save
6 0,33 € 0,00 €
12 0,30 € 0,39 €
30 0,26 € 1,97 €
54 0,25 € 4,45 €
102 0,21 € 11,79 €
252 0,18 € 37,31 €
504 0,16 € 83,01 €
1002 0,15 € 181,70 €
Available in stock 3005 Produits
The minimum purchase order quantity for the product is 6.
Paiements 100% sécurisés
Condition
Nouveau produit
Référence:
RBCTPBM5VM
Description
Product Range: MOLEX - PicoBlade 51047 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 5
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Lire la suiteShow less
Détails Produit
RBCTPBM5VM

Data sheet

Serie
PicoBlade - 51021
Intensité de courant
1A
Matériel
PA (Polyamide, Nylon)
Couleur
Blanc
Température de fonctionnement
-40°C a +85°C
Dimensions
8,00x8,00x3,20 (L x W x H)
Inflammabilité
94V-2
Voltage
125V
Montage
Sur fil
Genre
Femelle
Nombre de pôles
5
Nombre de rangées
1
Pas
1.25 mm
Orientation
90°
Type de produit
Corps du connecteur
Minimale commande
6
Unité de mesure
pièces
