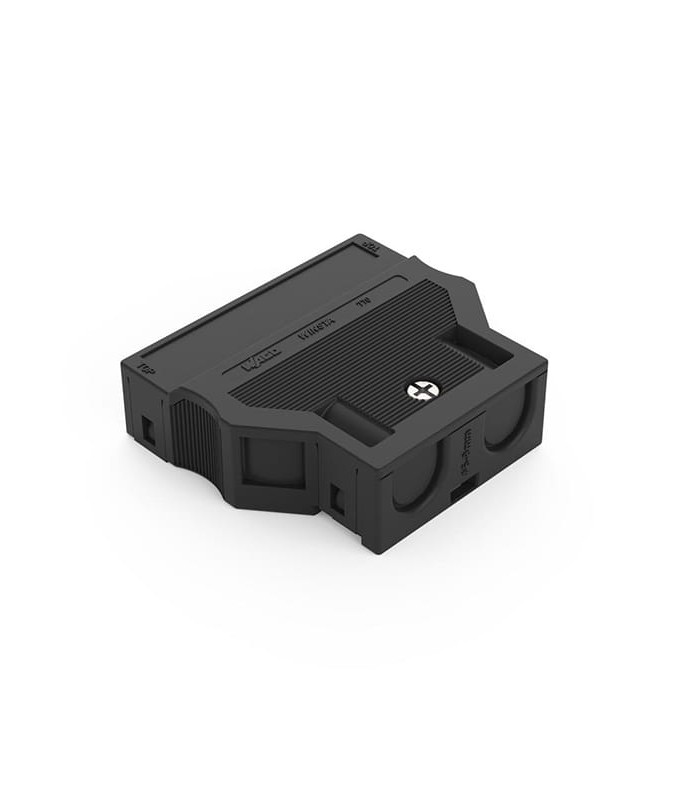

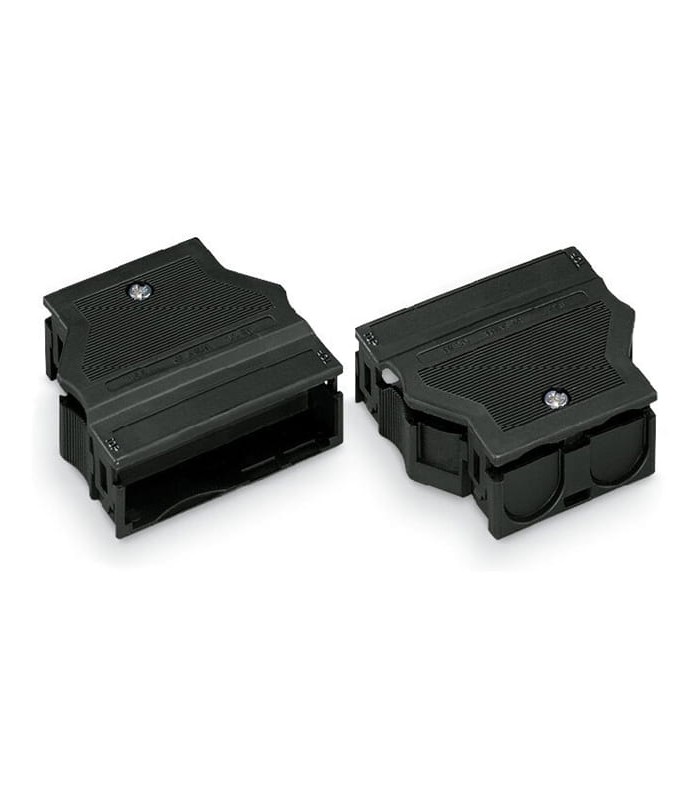

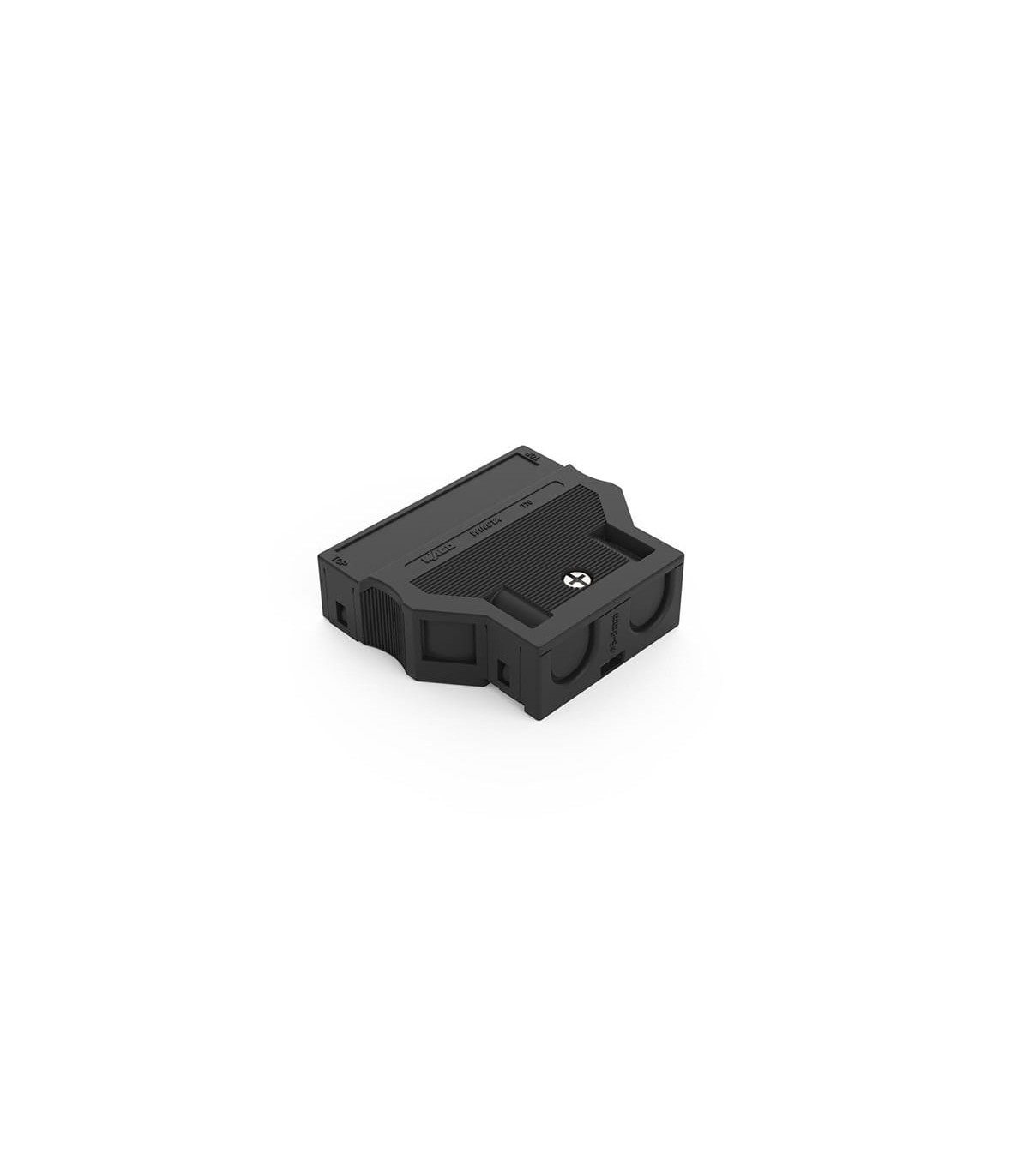

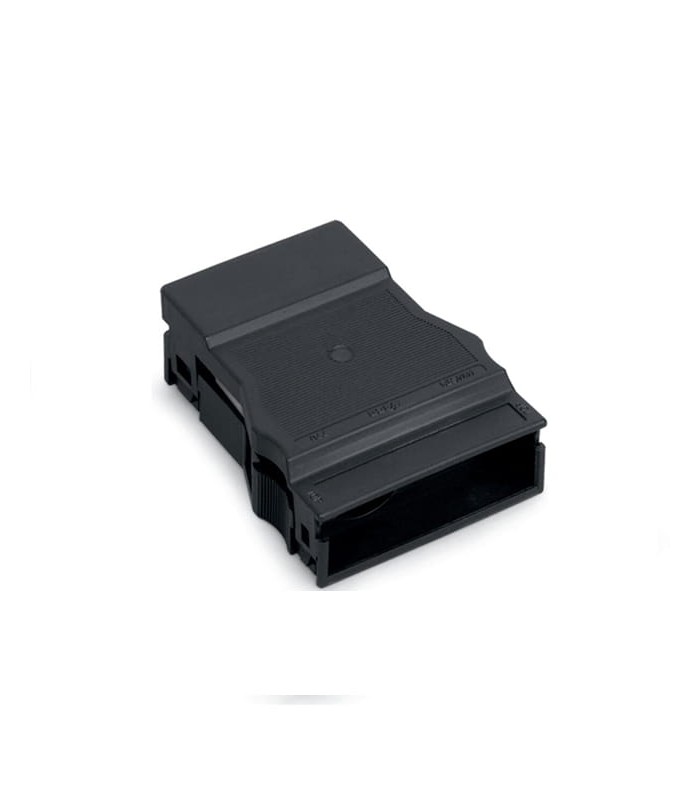

Capot Pour Connecteur Wago Femelle 5 Voies
Code ErreBi: 45790
Code Producteur: 770-505
Producteur: Wago
Lire la suiteShow lessCode Producteur: 770-505
Producteur: Wago
4,16 €
(tax excl.)
5,08 €
TTC
Condition
Neuf
Référence:
RBCW7701115
Marque:
Ajouter à la liste de souhaits
Connection data
- No. of poles: 5
- Diameter of the connectable sheathed cable: 9… 13 mm
- Stripping length: 55 mm
Geometric data
- Width: 54.6 mm / 2.15 inch
- Height: 17 mm / 0.669 inch
- Depth: 50 mm / 1.969 inch
Material data
- Black colour
- Insulating material: Polyamide (PA66)
- Fire load: 0.36 MJ
- Weight: 13.6 g
Environmental conditions
- Processing temperature: -5… +40 ° C
- Continuous operating temperature: -35… +85 ° C
- Note on permanent service temperature: Insulating parts for temperatures = 105 ° C
Lire la suiteShow less
- No. of poles: 5
- Diameter of the connectable sheathed cable: 9… 13 mm
- Stripping length: 55 mm
Geometric data
- Width: 54.6 mm / 2.15 inch
- Height: 17 mm / 0.669 inch
- Depth: 50 mm / 1.969 inch
Material data
- Black colour
- Insulating material: Polyamide (PA66)
- Fire load: 0.36 MJ
- Weight: 13.6 g
Environmental conditions
- Processing temperature: -5… +40 ° C
- Continuous operating temperature: -35… +85 ° C
- Note on permanent service temperature: Insulating parts for temperatures = 105 ° C
