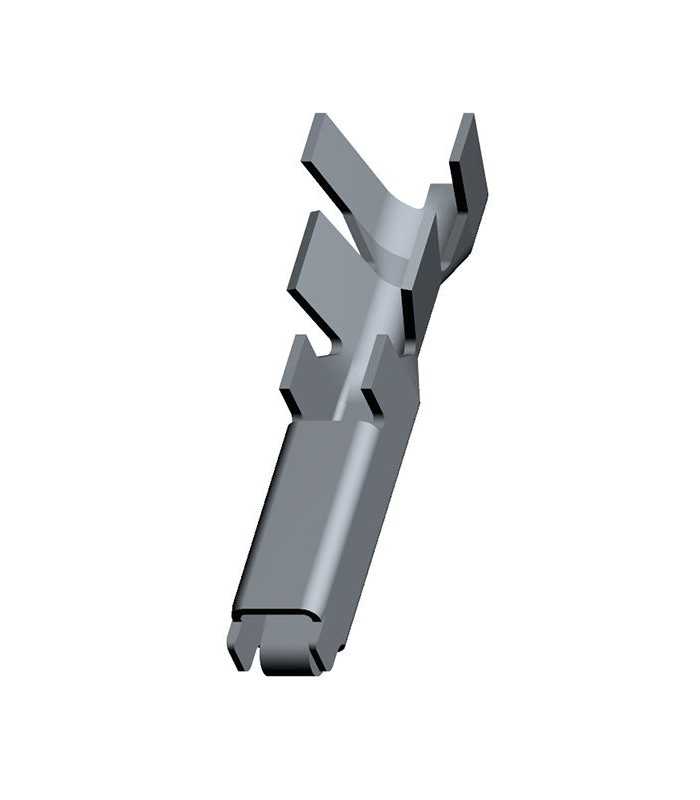

Borne MultiLock Series 070 femelle section 0,85-1,5mmq

Product Type Features
-Sealable: No
-Primary Locking Feature: Clean Body
-Receptacle Style: 180°

Contact Features
-Crimp Type: F-Crimp
-Typical Current Rating (A): 14
-Terminal Type: Receptacle
-Mating Tab Width: 1.8 mm [ .071 in ]
-Mating Tab Thickness: .64 mm [ .025 in ]
-Interface Plating: Tin (Sn)
-Contact Termination Area Plating Material: Tin (Sn)

Termination Features
-Termination Method to Wire & Cable: Crimp
-Product Terminates To: Wire

Dimensions
-Wire Size (AWG): 18 – 15
-Wire Size (mm²): .75 – 1.5
-Wire Size Search (mm²): .75, 1, 1.25, 1.5
-Wire Size Search (AWG): 15, 16, 17, 18
-Wire Insulation Diameter: 1.7 – 2.4 mm [ .075 – .094 in ]

Usage Conditions
-Insulation Requirement: Uninsulated
-Operating Temperature (Max) (°C): 80, 85, 90, 100, 105
-Operating Temperature (Max) (°F): 176, 185, 194, 212, 221
-Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Operation/Application
-Compatible With Wire Base Material: Copper


Other
-Terminal Transmits: 0 – 24 A (Low Power)
