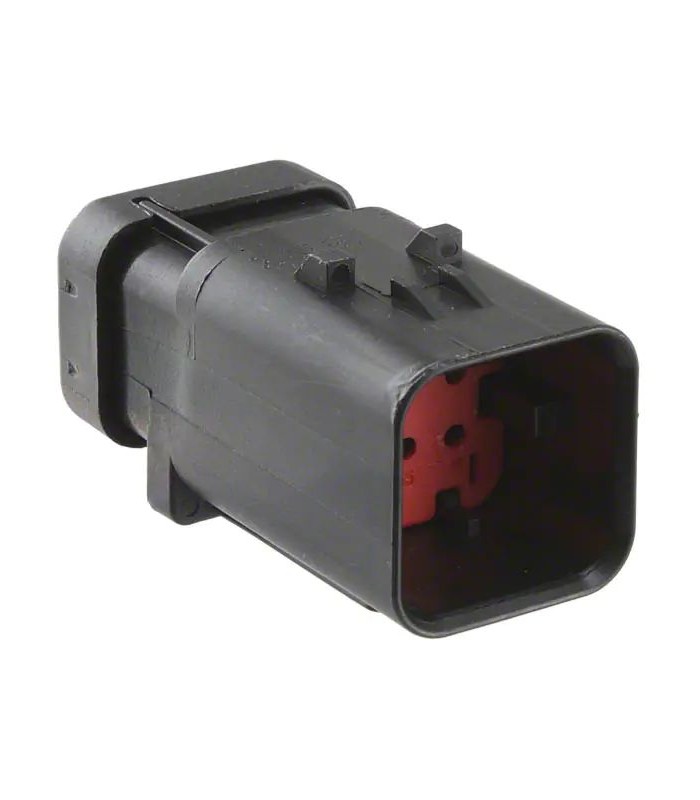

Connecteur AmpSeal series 16 femelle 6 Voies

Characteristics of the product type

Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing

Configuration features

Number of positions: 6

electrical characteristics

Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Characteristics of the body

Body Material: Other
Cable exit angle: 180 °
Main product color: natural

Contact characteristics

Diameter of the coupling pin: 1.3 mm [.051 in]

Mechanical attack

Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without

Housing features

Centerline (pitch): 4 mm [.157 in]

Dimensions

Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]

Terms of use

Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257

Industry standard

UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
