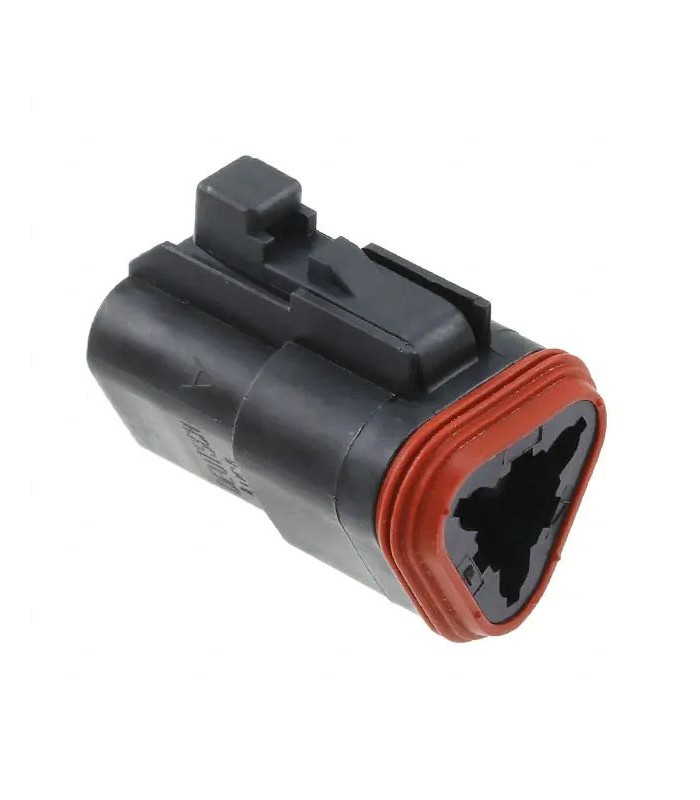

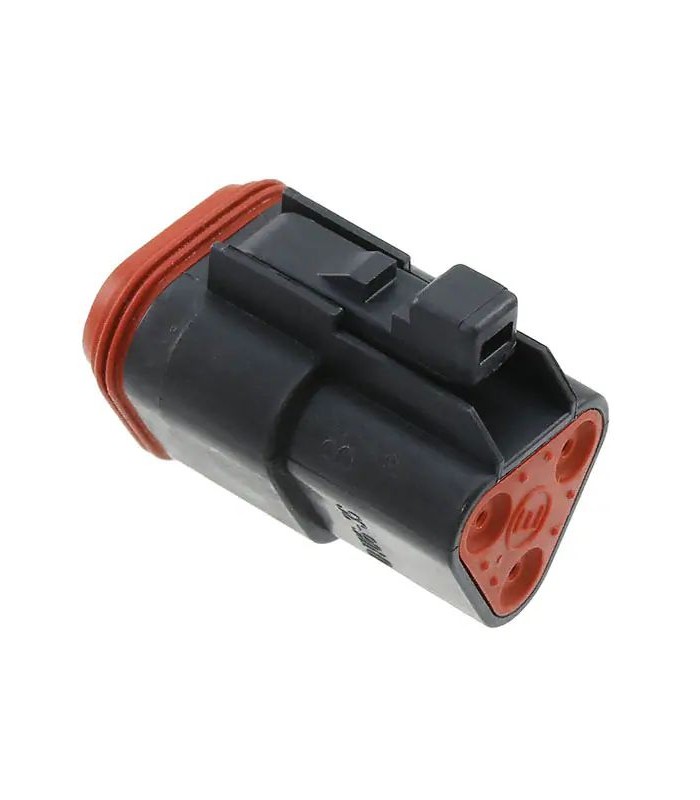

Connecteur Series DT Mâle 3 Voies Noir

Product Type Features
- Connector & Housing Type : Housing for Female Terminals
- Connector System : Wire-to-Wire
- Sealable : Yes
- Hybrid Connector : No
- Primary Locking Feature : Integrated in Housing
- Connector & Contact Terminates To : Wire & Cable
- Strain Relief : Add By Accessory

Configuration Features
- Number of Positions : 3
- Blank Cavity Position : 0

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250

Body Features
- Primary Product Color : Black
- Cable Exit Angle : 180°
- Body Material : PA GF

Contact Features
- Mating Pin Diameter : 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13

Mechanical Attachment
- Mounting Feature : Without
- Terminal Position Assurance : Yes
- Polarized : Yes

Housing Features
- Centerline (Pitch) : 10.01 mm [ .394 in ]

Dimensions
- Width : 18.37 mm [ .723 in ]
- Height : 23.73 mm [ .934 in ]
- Length : 28.4 mm [ 1.118 in ]

Usage Conditions
- Operating Temperature (Max) : 125 °C [ 257 °F ]
- Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
- Circuit Application : Power & Signal

Industry Standards
- Degree of Protection : IP68, IP6K9K
- UL Flammability Rating : 12mm Flame Test per Standard UL-94
- Agency/Standard : SAE J2030

Other
- Connector Position Assurance Capable : No
- Serviceable : Yes
