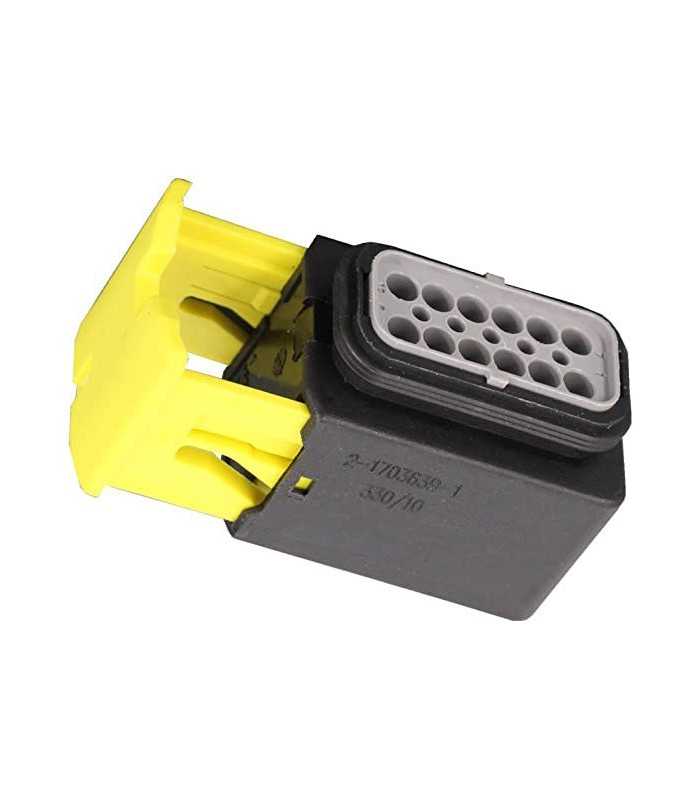

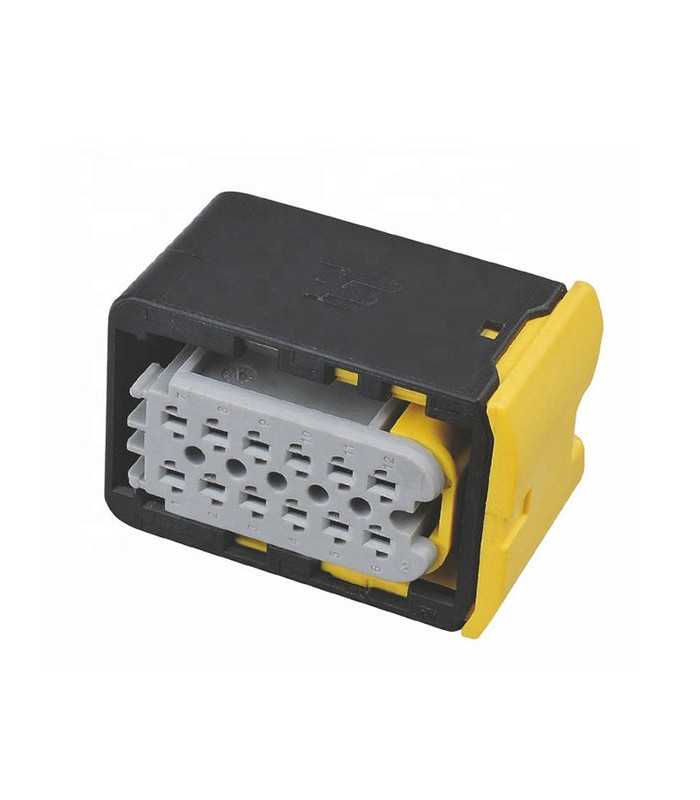

Connecteur MCP 1.5K mâle 12 Voies

Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: On the Terminal
- Strain Relief: No

Configuration Features
- Number of Positions: 12
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 42, 60
- Operating Voltage (VDC): 60

Body Features
- Primary Product Color: Black
- Cable Exit Angle: Other
- Body Material: PBT GF

Contact Features
- Mating Tab Width: 1.6 mm [ .063 in ]

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 4 mm [ .157 in ]

Dimensions
- Width: 25.7 mm [ 1.012 in ]
- Height: 31.25 mm [ 1.23 in ]
- Length: 54.1 mm [ 2.13 in ]

Usage Conditions
- Operating Temperature Range: -40 – 140 °C [ -40 – 284 °F ]

Operation/Application
- Circuit Application: Signal

Industry Standards
- Degree of Protection: IP67
- UL Flammability Rating: UL 94V-0

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
