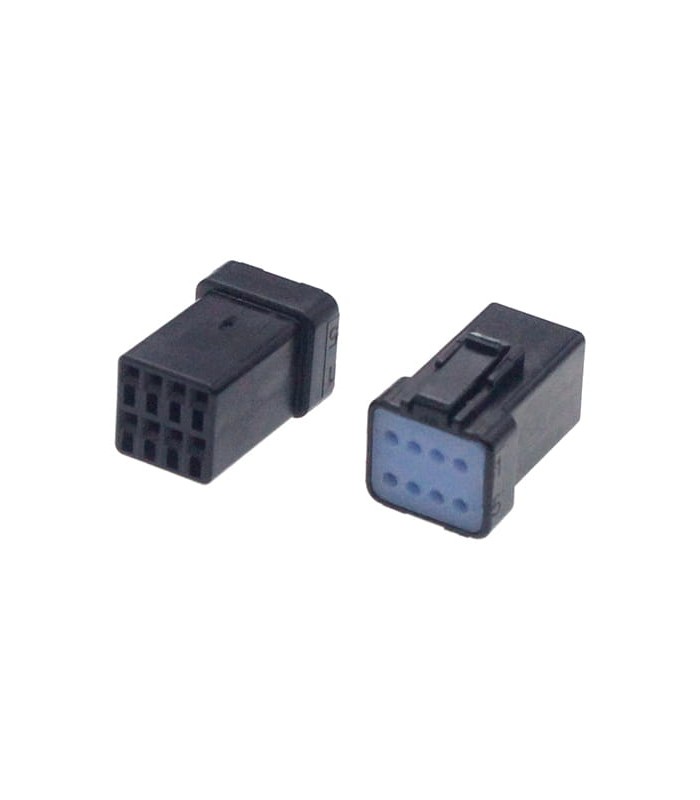

Connecteur JWPF mâle 8 Voies noir

Series: JWPF
Color: Black
No. of Positions: 8
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
