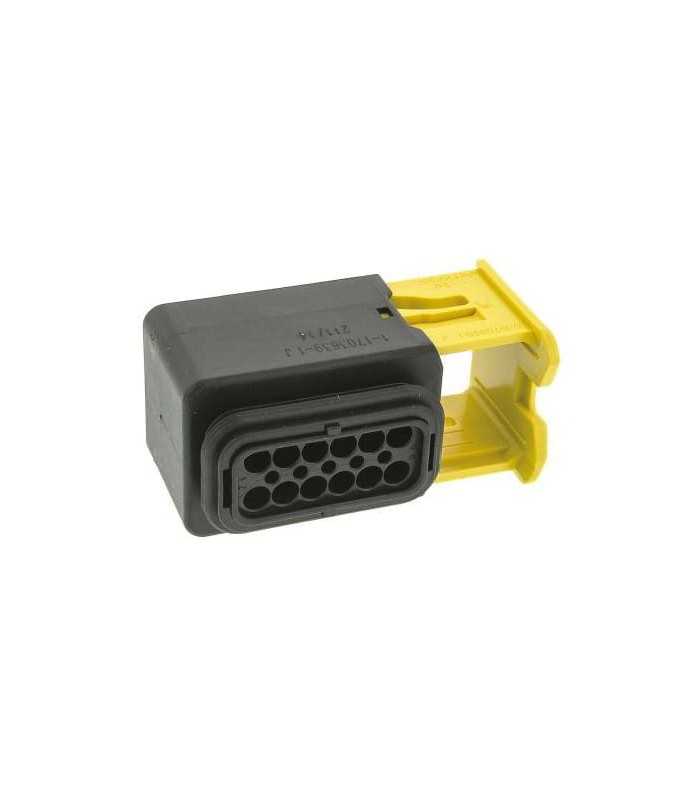

Connecteur MCP Mixed male 6x2 voies

Number of positions: 12 positions
Pitch: 4mm
Gender: Male
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
Maximum wire diameter: 16 AWG
Black colour
Flammability class: UL 94 V-0
Height: 31.25mm
Housing Material: Polybutylene Terephthalate (PBT)
Ingress Protection: IP67
Length: 54.1mm
Locking mechanism: on the terminal
Maximum working temperature: +140C
Minimum operating temperature: - 40 C
Mounting angle: straight
Number of lines: 2 lines
Rated voltage: 42V DC
Width: 25.7mm
Conductor Size Range: 16 AWG
Unit Weight: 20g
