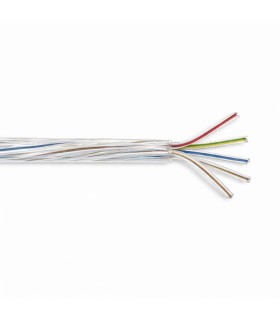

Câble électrique multipolaire Fror 5G1,5

Conductors: red copper CEI EN 60228
Insulation: PVC quality R2 CEI EN 50363
Core colors: DIN 47100 - UNEL 00722 - HD 308
Sheath: PVC TM2 quality IEC 50363
Sheath color: gray RAL 7035
Fire retardant: CEI 20-22 / II
Flame retardant: IEC 60332-1-2
Reduced emission of: (<22%) CEI EN 50267-2-1 - IEC 60754-1
Resistant to oils: CEI 20-34 / 0-1
Electrical resistance: (0.22 mm2 < 91 Ohm / km) (0.35 mm2 < 57 Ohm / km) CEI EN 60228
Current carrying capacity: CEI 20-40
Rated voltage Uo / U: 450/750 V
Maximum voltage: 825 V
Test voltage: 2500 V
Maximum working temperature: 70 ° C
Short circuit temperature: 160 ° C
Temperature min speed: 0 ° C
Bending radius: 6 x Ø
