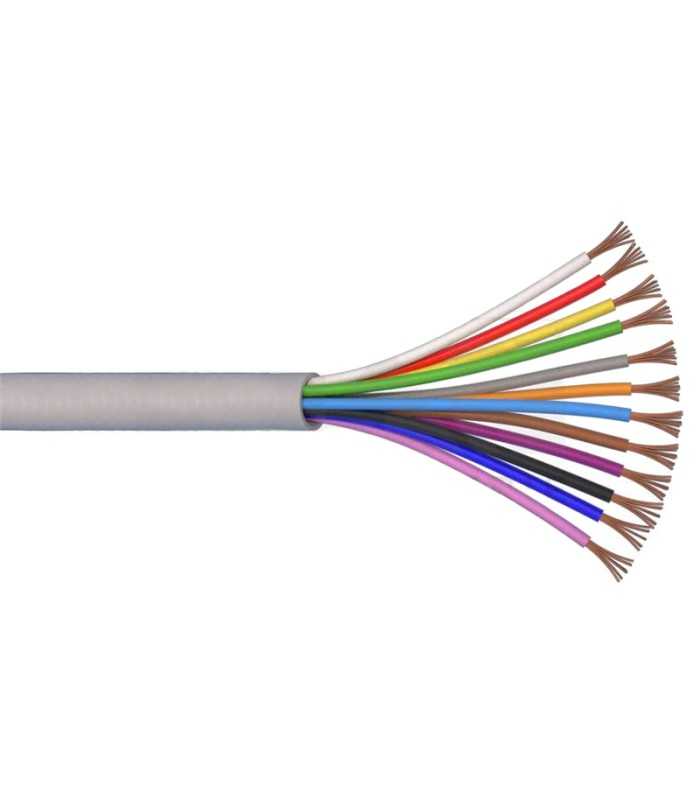

Câble électrique multipolaire Fror 12X0,25 mmq gaine extérieure grise

PVC insulated power cable with PVC sheath, not propagating fire with reduced corrosive gas emission.

Conductor: Plain copper flexible wire,class 5
Insulation: PVC compound,TI2 quality
Outer sheath: PVC compound,TM2 quality
Cores colour: HD 308 Standard
Sheath colour: Grey

TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 450/750V
Maximum operating temperature: 70°C
Minimum operating temperature: -15°C(with out mechanical stress)
Minimum installation temperature: 0°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 15 N/mmq (mobile laying) - 50 N/mmq (fixed laying)
Minimum bending radius: 4x maximum external diameter (fixed laying) - 10x maximum external diameter (mobile laying)

Use and installation
Suitable for connection of movable equipment or for fixed laying in areas with riskof fire. To be used in dry or wet interiors and for occasional or temporary use outdoor. Not allowed for laying underground even if protected.
