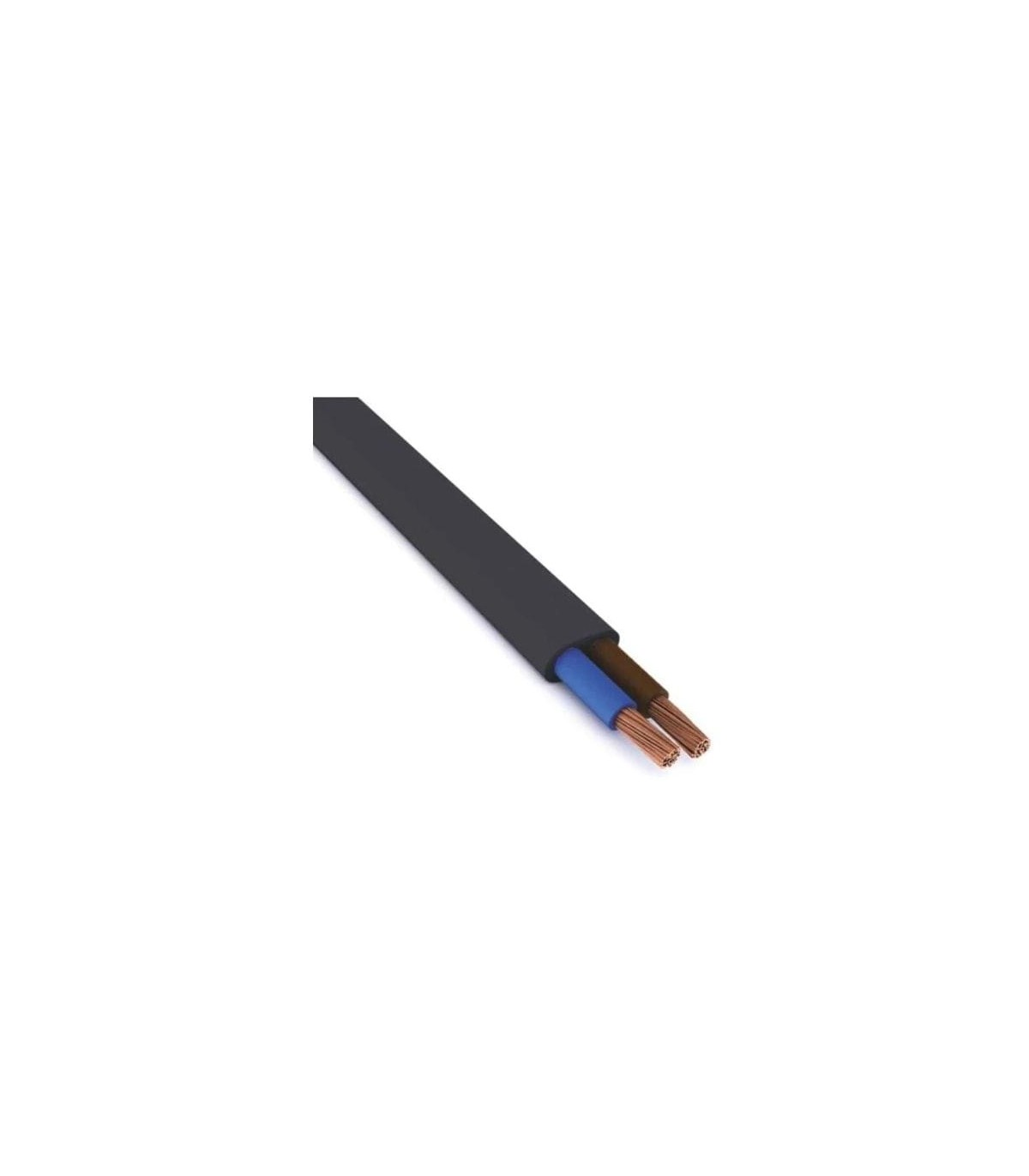

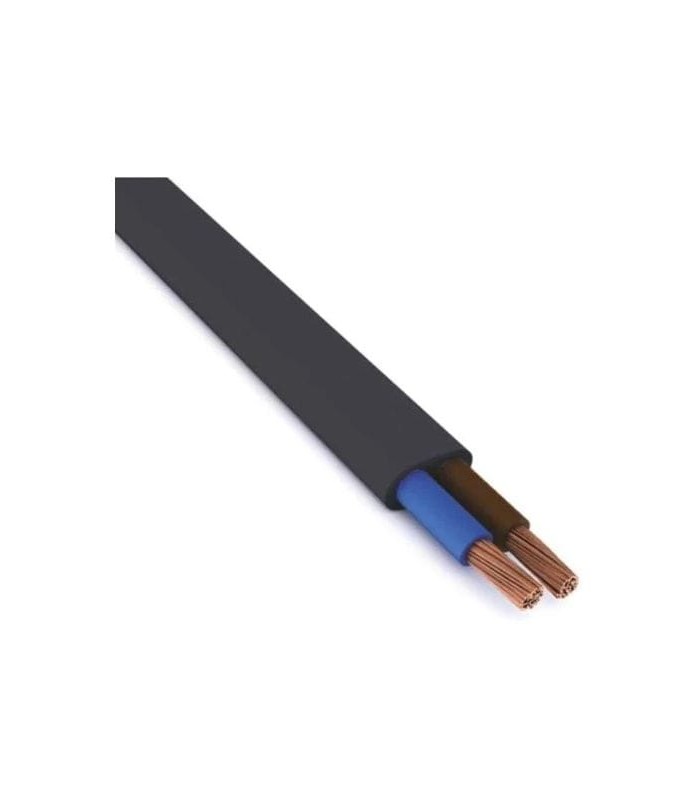

Câble électrique multiconducteur plat FLRY 2x0,75

PVC multicore cables, designed for the automotive industry, offer high resistance to mineral oils, hydrocarbons (such as gasoline and petrol), and typical engine compartment fluids. They are ideal for applications requiring reliability, flexibility, and good chemical resistance even under intermittent thermal conditions.

APPLICATIONS

These multicore cables are used in the wiring of motor vehicles—automobiles, commercial vehicles, and industrial vehicles—as signal cables for very low voltage distribution to passenger compartment instruments and the engine compartment. They are also suitable for installation inside doors, ceiling lights, and other areas subject to intermittent heat exposure.
They guarantee excellent chemical resistance to the aggressive agents present in vehicles, maintaining electrical performance even under harsh conditions.

Technical specifications

Maximum operating temperature: + 105 °C
Minimum operating temperature: - 40 °C
Operating voltage: 300 V
Test voltage: 3 kV
Flame resistance: 7.Z8220 , Par. 3.7
Bending radius: = 9xDmax
Suitable for internal installation
Suitable for fixed installation
Outer diameter: 2.10 mm
Number of conductors: 2
Cable section: 0.75 mmq
Outer sheath color: black
